User Configuration File - Preprocessing Sections¶
To execute the SURF-NEMO package, users need to configure various model parameters that define several aspects of the simulation, including the specific simulation region, simulation period, horizontal and vertical turbulence schemes, input datasets, interpolation methods, etc. These parameters are essential for the pre- and post-processing stages, as well as for generating the Fortran namelist required to execute the NEMO-OCE model.
The configuration process requires specifying the values of these parameters in the user configuration file, setParFree.json. This file is structured to organize all user-configurable input parameters into sections based on their respective functions.
It has been designed to meet the needs of intermediate-level users, particularly PhD researchers, who are conducting downscaling experiments and validating specific aspects of the NEMO model.
Certain model parameters are predefined and fixed within the SURF source package. These fixed parameters are specified in the setParFix.ncl file. For more information about these fixed parameters, please refer to Appendix A.
In this chapter, we provide detailed explanations for each section of the user configuration file, including the acceptable parameter values, unit measurements, and the “reference value” used in the test case experiment (see Section 3.3).
Configuration file and JSON Object Structure¶
The user configuration file for the SURF-NEMO package is based on the JavaScript Object Notation (JSON) format, a simple, text-based method for storing and transmitting structured data. JSON is both "self-describing" and easy to read, making it an ideal choice for configuration files. It supports complex data types and structures and is widely used in web applications for its simplicity and flexibility.
JSON syntax is derived from JavaScript object notation and can represent data in two main forms: arrays and objects (associative arrays of name/value pairs, also referred to as properties). An array is a comma-separated list of values enclosed in square brackets [ ], while an object is a collection of name/value pairs enclosed in curly brackets { }. Each name/value pair consists of a field name (in double quotes) followed by a colon :, and then the field value. The value can be of various types, including numbers (integer or floating-point), strings (enclosed in double quotes), booleans (true or false), arrays, objects, or null.
In the SURF-NEMO package's configuration file, the top-level structure is the "sections" array, which contains a collection of objects. Each object represents a configuration section and includes three key properties:
- Title – A description of the section's contents.
- ID – A unique four-digit alphanumeric identifier (e.g.,
id = A001,A002for pre-processing sections, andB001,B002for post-processing sections). - Items – An array of parameters specific to that section.
Each element of the "items" array is an object that consists of:
- Name – The name of the parameter.
- Value – The corresponding value for the parameter.
- Data type – The type of the parameter value (e.g.,
int,float,double,bool,string). - Description – A brief explanation of what the parameter represents.

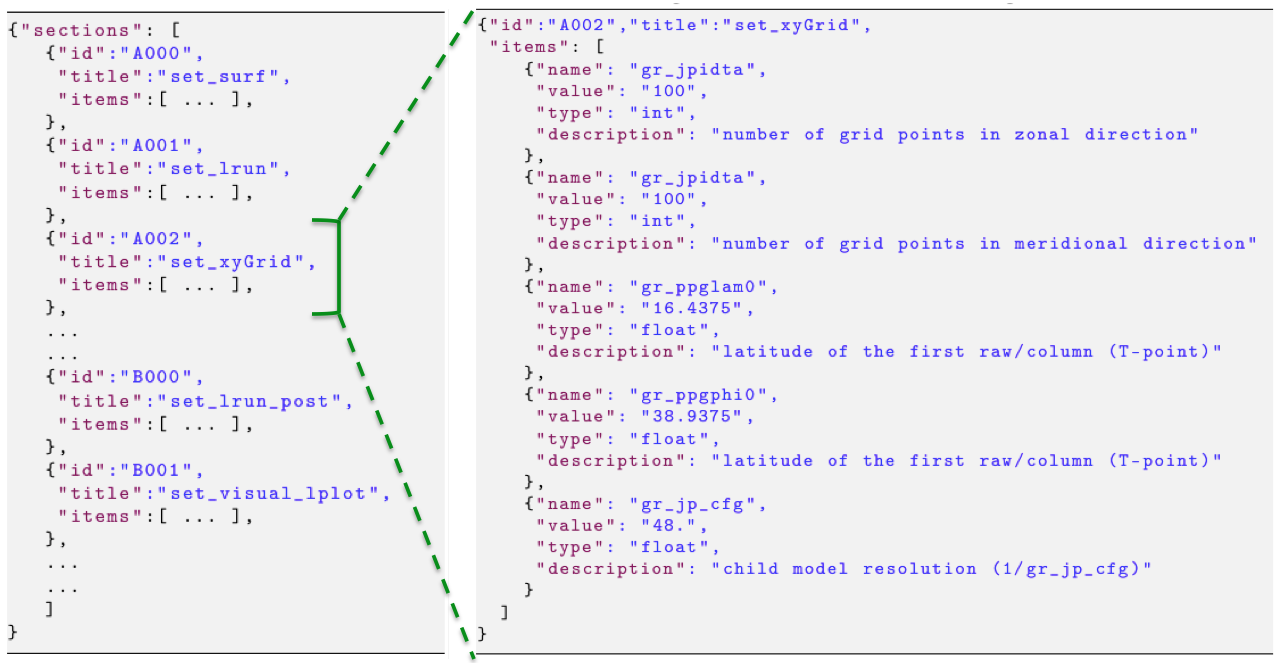

Figure 5.1 illustrates the structure of the JSON configuration file for the current version of the SURF-NEMO package. This organized format allows users to efficiently manage and customize their simulation parameters.
General Configuration and Initialization¶
set_surf¶
This section contains the following two parameters:
| Parameter | Value | Description |
|---|---|---|
nnest |
1 | Number of nesting domains |
nameNestDomain |
gulfTaranto | Name of the nest domain to simulate |
set_lrun¶
This section includes logical parameters that control the activation or deactivation of specific tasks within the simulation. It determines which processes are enabled during the model's run.
| Parameter | Value | Description |
|---|---|---|
lrun_childMeshMask |
True | Enables the execution of the CHILD-MESHMASK GENERATION task |
lrun_regridPreAtm |
True | Enables the execution of the ATMOSPHERIC-DATA-REGRIDDING task |
lrun_regridPreOceIC |
True | Enables the execution of the OCEAN-IC-DATA-REGRIDDING phase |
lrun_regridPreOceBC |
True | Enables the execution of the OCEAN-BC-DATA-REGRIDDING phase |
lrun_regridPreTideBC |
False | Enables the execution of the TIDE-BC-DATA-REGRIDDING phase |
lrun_regridPreWeights |
True | Enables the computation/copy of WEIGHT-FILEs for input fields remapping |
lrun_ocean |
True | Enables the execution of the NEMO code |
lrun_regridOutUV |
False | Enables the execution of the output-UV fields remapping (from UV GRID to T-GRID) |
lrun_regridOutUVWeghts |
False | Enables the computation/copy of WEIGHT-FILEs for output-UV fields remapping |
lrun_shapFiltBat |
True | Enables the execution of the SHAPIRO Filter for Bathymetric datasets |
lrun_shapFiltOce |
False | Enables the execution of the SHAPIRO Filter for Ocean datasets |
Spatial Grid Generation Settings¶
set_xyGrid¶
This section defines the input parameters required for generating the horizontal grid of the model. The horizontal grid setup determines the spatial resolution and the domain layout of the simulation area.
| Parameter | Value | Description |
|---|---|---|
gr_xygridSpec |
0 | Parameters specification for the horizontal grid |
gr_jpidta |
94 | Number of grid points in the zonal direction |
gr_jpjdta |
79 | Number of grid points in the meridional direction |
gr_ppglam0 |
16.4375 | Longitude of the first raw and column T-point |
gr_ppglam1 |
NOTUSED | Longitude of the last raw and column T-point (if applicable) |
gr_ppgphi0 |
38.9375 | Latitude of the first raw and column T-point |
gr_ppgphi1 |
NOTUSED | Latitude of the last raw and column T-point (if applicable) |
gr_jp_cfg |
48.0 | Child model resolution (1/gr_jp_cfg) |
gr_jp_cfg_father |
16.0 | Father model resolution (1/gr_jp_cfg_father) |
set_zGrid¶
This section includes the input parameters used to generate the vertical grid. The vertical grid is essential for defining the stratification and depth levels of the model, impacting the vertical resolution of the simulation.
| Parameter | Value | Description |
|---|---|---|
gr_jpkdta |
120 | Number of vertical levels |
gr_zgridSpec |
1 | Parameters specification for the vertical grid |
gr_ppsur |
NOTUSED | Parameter h_sur for the z-coord. transformation (if applicable) |
gr_ppa0 |
NOTUSED | Parameter h_0 for the z-coordinate transformation (if applicable) |
gr_ppa1 |
NOTUSED | Parameter h_1 for the z-coordinate transformation (if applicable) |
gr_ppkth |
100.0 | Parameter h_th for layer stretching in the vertical grid |
gr_ppacr |
30.0 | Grid stretching factor |
gr_ppdzminw |
2.8 | Depth of the top model layer |
gr_pphmaxw |
0.0 | Maximum depth of the ocean depth |
gr_dbletanh |
False | Enables the use of the double tanh function for vertical coordinates |
gr_ppa2 |
NOTUSED | Parameter h_2 if double tanh is enabled (if applicable) |
gr_ppkth2 |
NOTUSED | Parameter h_th2 if double tanh is enabled (if applicable) |
gr_ppacr2 |
NOTUSED | Parameter h_cr2 if double tanh is enabled (if applicable) |
| --- |
Simulation Timing Settings¶
set_dateTime¶
This section specifies the parameters that define the simulation period and time discretization. It includes the start and end dates of the simulation, as well as the time steps for model calculations.
| Parameter | Value | Description |
|---|---|---|
start_date |
20141005 | Initial date of the simulation (the run starts at 00:00) |
ndays |
3 | Total number of simulation days |
ndays_spinup |
1 | Number of spin-up days |
dom_rdt |
150.0 | Simulation 'baroclinic' time step |
runMan_write |
24 | Frequency of write in the output file expressed as the number of simulation time steps |
dom_btAuto |
False | Enables the automatic definition of baro-timestep based on maximum courant number |
dom_btCmax |
0.8 | Maximum courant number (allowed if dom_btAuto=True) |
dom_baro |
100 | Number of iterations of barotropic mode during dom_rdt (allowed if dom_btAuto=False) |
runMan_rstart |
True | Start from rest (False) or from a restart file (True) |
ndays_xsimu |
1.0 | Number of days per each restart simulation |
Boundary and Surface Condition Settings¶
set_tide¶
This section includes the parameters for configuring tidal components in the model. It allows for the inclusion of tidal effects either as the equilibrium tidal sea level and/or only at the lateral boundaries.
| Parameter | Value | Description |
|---|---|---|
latBtide_lPot |
False | Enables the use of tidal potential forcing |
latBtide_K1 |
K1 | Name of the Lunar diurnal K1 tidal component |
latBtide_O1 |
O1 | Name of the Lunar diurnal O1 tidal component |
latBtide_P1 |
P1 | Name of the Solar diurnal P1 tidal component |
latBtide_Q1 |
Q1 | Name of the Larger lunar elliptic diurnal Q1 tidal component |
latBtide_K2 |
K2 | Name of the Lunisolar semidiurnal K2 tidal component |
latBtide_M2 |
M2 | Name of the Principal lunar semidiurnal M2 tidal component |
latBtide_N2 |
N2 | Name of the Larger lunar elliptic semidiurnal N2 tidal component |
latBtide_S2 |
S2 | Name of the Principal solar semidiurnal S2 tidal component |
latBtide_M4 |
M4 | Name of the Shallow water overtides of principal lunar M4 tidal component |
latBtide_Mm |
NOTUSED | Name of the Lunar monthly Mm tidal component |
latBtide_Mf |
NOTUSED | Name of the Lunisolar fortnightly Mf tidal component |
set_sbc¶
This section contains the parameters used to set up surface boundary conditions.
| Parameter | Value | Description |
|---|---|---|
sbc_iformulat |
0 | Surface boundary condition formulation to be used: 0 = MFS bulk formulat, 1 = fluxform+ssRest, 2 = CORE formulation |
sbc_ltimeInterp |
True | Activate or not the time interpolation: False = steplike shape forcing, True = broken line shape forcing |
sbc_zreftemp |
10.0 | Reference height (m) for the Air Temperature and humidity (for the CORE formulation) |
sbc_zrefwind |
10.0 | Reference height (m) for the wind vector (for the CORE formulation) |
sbc_aprdyn |
False | Enables the inclusion of atmospheric pressure gradient in ocean and ice equations |
sbc_sclapr |
1.0 | Scaling factor to convert atmospheric pressure from hPa to Pa |
set_obc¶
This section provides the parameters for defining lateral open boundary conditions.
| Parameter | Value | Description |
|---|---|---|
obc_dyn2d |
flather | Algorithm of boundary condition for barotropic solution: flather |
obc_dyn2d_dta |
1 | Boundary data to use: 0 = Initial condition, 1 = external data, 2 = tidal forcing, 3 = external data+tidal |
obc_dyn3d |
frs | Algorithm of boundary condition for baroclinic velocities: frs, orlanski |
obc_dyn3d_dta |
1 | Boundary data to use: 0 = Initial condition, 1 = external data |
obc_tra |
frs | Algorithm of boundary condition for active tracers: frs, orlanski |
obc_tra_dta |
1 | Boundary data to use: 0 = Initial condition, 1 = external data |
obc_rimwidth |
1 | Width of the FRS zone |
obc_ltimeInterp |
True | Activate or not the time interpolation: False = steplike shape forcing, True = broken line shape forcing |
obc_lvelCorr |
True | Activate the Integral Constraint method to preserve the total transport after the interpolation |
Physical Parameterization Settings¶
set_eos¶
This section defines the parameters related to the equation of state of seawater.
| Parameter | Value | Description |
|---|---|---|
eos_type |
0 | Type of equation of state and Brunt-Vaisala frequency: -1 = TEOS-10, 0 = EOS-80, 1 = S-EOS |
eos_useCT |
False | Enables the use of Conservative Temperature; surface CT converted to Potential Temperature in sbcssm |
eos_a0 |
0.1655 | S-EOS coefficients: thermal expansion coefficient |
eos_b0 |
0.76554 | S-EOS coefficients: saline expansion coefficient |
eos_lambda1 |
0.05952 | S-EOS coefficients: cabbeling coefficient in T² (0 for linear EOS) |
eos_lambda2 |
0.00074914 | S-EOS coefficients: cabbeling coefficient in S² (0 for linear EOS) |
eos_mu1 |
0.0001497 | S-EOS coefficients: thermobaric coefficient in T (0 for linear EOS) |
eos_mu2 |
1.109e-05 | S-EOS coefficients: thermobaric coefficient in S (0 for linear EOS) |
eos_nu |
0.0024341 | S-EOS coefficients: cabbeling coefficient in T*S (0 for linear EOS) |
set_botFric¶
This section contains the parameters used to specify bottom friction settings
| Parameter | Value | Description |
|---|---|---|
botB_bfri2 |
1.e-3 | Bottom drag coefficient (non-linear case) |
botB_bfeb2 |
2.5e-3 | Bottom turbulent kinetic energy background (m²/s²) |
set_xyturbTracers¶
This section includes the free input parameters for the parameterization of lateral subgrid-scale diffusion for tracers like temperature and salinity.
| Parameter | Value | Description |
|---|---|---|
tra_typeOperator |
1 | Type of operator used: 0 = laplacian, 1 = bilaplacian |
tra_eddycoeffSpec |
1 | Horizontal eddy coefficient specification: 0 = defined by tra_eddycoeff_child, 1 = defined from tra_eddycoeff_father |
tra_eddycoeff_child |
-6.e8 | Horizontal eddy diffusivity of the child model (>0 for laplacian, <0 for bilaplacian) (if =NOTUSED, parameter not read) |
tra_eddycoeff_father |
-6.e8 | Horizontal eddy diffusivity of the father model to be used in fat/child coefficient relation (if =NOTUSED, parameter not read) |
tra_factor |
1.0 | Factor used in fat/child coefficient relation (for laplacian or bilaplacian calculations) |
set_xyturbMomentum¶
This section includes the free input parameters that define the parameterization of lateral subgrid-scale viscosity for momentum.
| Parameter | Value | Description |
|---|---|---|
dyn_typeOperator |
1 | Type of operator used: 0 = laplacian, 1 = bilaplacian |
dyn_eddycoeffSpec |
1 | Horizontal eddy coefficient specification: 0 = defined by dyn_eddycoeff_child, 1 = defined from dyn_eddycoeff_father |
dyn_eddycoeff_child |
-0.5e9 | Horizontal eddy viscosity of the child model (>0 for laplacian, <0 for bilaplacian) (if =NOTUSED, parameter not read) |
dyn_eddycoeff_father |
-1.e9 | Horizontal eddy viscosity of the father model to be used in father/child coefficient relation (if =NOTUSED, parameter not read) |
dyn_factor |
1.0 | Factor used in father/child coefficient relation (for laplacian or bilaplacian calculations) |
set_zturb¶
This section specifies the parameters for vertical turbulence, including eddy viscosity and diffusivity coefficients, which are essential for modeling vertical mixing and stratification in the water column.
| Parameter | Value | Description |
|---|---|---|
zdyn_avm0 |
1.2e-5 | Vertical eddy viscosity [m²/s] (background Kz if not 'key_zdfcst') |
zdyn_avt0 |
1.2e-6 | Vertical eddy diffusivity [m²/s] (background Kz if not 'key_zdfcst') |
zdyn_avevd |
10.0 | EVD mixing coefficient [m²/s] |
zdynric_avmri |
1.e-2 | Maximum value of the vertical viscosity |
zdynric_alp |
5.0 | ... |
zdynric_ric |
2 | ... |
zdynric_ekmfc |
0.7 | ... |
zdynric_mldmin |
1.0 | ... |
zdynric_mldmax |
1000.0 | ... |
zdynric_wtmix |
10.0 | ... |
zdynric_wvmix |
10.0 | ... |
zdynric_mldw |
False | ... |
zdyntke_ediff |
0.1 | ... |
zdyntke_ediss |
0.7 | ... |
zdyntke_ebb |
67.83 | ... |
zdyntke_emin |
1.e-6 | ... |
zdyntke_emin0 |
1.e-4 | ... |
zdyntke_mxl |
2 | ... |
zdyntke_pdl |
1 | ... |
zdyntke_lmxl0 |
True | ... |
zdyntke_rmxl0 |
0.04 | ... |
zdyntke_llc |
True | ... |
zdyntke_rlc |
0.15 | ... |
zdyntke_etau |
0 | ... |
zdyntke_efr |
0.05 | ... |
zdyntke_htau |
1 | ... |
zdyngls_emin |
1.e-6 | ... |
zdyngls_epsmin |
1.e-12 | ... |
zdyngls_length_lim |
True | ... |
zdyngls_clim_galp |
0.53 | ... |
zdyngls_sigpsi |
True | ... |
zdyngls_rcrban |
100.0 | ... |
zdyngls_charn |
70000.0 | ... |
zdyngls_hsro |
0.02 | ... |
zdyngls_frac_hs |
1.3 | ... |
zdyngls_z0_met |
2 | ... |
zdyngls_bc_surf |
1 | ... |
zdyngls_bc_bot |
1 | ... |
zdyngls_stab_func |
2 | ... |
zdyngls_clos |
1 | ... |
zdynkpp_kpprimix |
True | ... |
zdynkpp_difmiw |
1.0e-04 | ... |
zdynkpp_difsiw |
0.1e-04 | ... |
zdynkpp_riinfty |
0.8 | ... |
zdynkpp_difri |
0.0050 | ... |
zdynkpp_bvsqcon |
-0.01e-07 | ... |
zdynkpp_difcon |
1.0 | ... |
zdynkpp_avb_k |
0 | ... |
zdynkpp_ave |
1 | ... |
Dataset Download Configuration¶
set_dataDownlCoast_urlName¶
This section defines the parameters used to construct the URL for accessing input coastline datasets. These datasets can be sourced from either a local directory or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlCoast_usr |
myusername |
Username to access the coastline datasets from a remote FTP server |
urlCoast_pwd |
mypwd |
Password to access the coastline datasets from a remote FTP server |
urlCoast_urlbase |
file:///scratch/surf/surf_datasets/current/coastline/GSHHS_shp/(RESCOAST) |
Parametric URL name (e.g., ftp:/... or file:///...) for the coastline datasets. Parameters: (RESCOAST) |
urlCoast_resol |
h |
Name for spatial resolution used to replace the substring (RESCOAST) in the parametric URL name |
set_dataDownlCoast_fileName¶
This section specifies the parameters required to generate the filenames of the input coastline datasets. These filenames help identify the relevant files in the storage location.
| Parameter | Value | Description |
|---|---|---|
fileCoast_lland |
True |
Enables the use of the land coastline |
fileCoast_filebaseLand |
GSHHS_(RESCOAST)_L1.shp |
File name for NOAA coastline datasets containing the boundary between land and ocean (if fileCoast_lland=True) |
fileCoast_llake |
False |
Enables the use of the lake coastline |
fileCoast_filebaseLake |
GSHHS_(RESCOAST)_L2.shp |
File name for NOAA coastline datasets containing the boundary between lake and land (if fileCoast_llake=True) |
fileCoast_lislandlake |
False |
Enables the use of the islelake coastline |
fileCoast_filebaseIslandlake |
GSHHS_(RESCOAST)_L3.shp |
File name for NOAA coastline datasets containing the boundary between island-in-lake and lake (if fileCoast_lislandlake=True) |
fileCoast_resol |
h |
Name for spatial resolution used to replace the substring (RESCOAST) in the parametric file name |
fileCoast_lcompression |
False |
Indicates if datasets to be downloaded are gzip compressed files (*.gz) |
fileCoast_lkeepSrcFull |
True |
Indicates if the full uncut datasets should be kept on disk after download |
set_dataDownlBat_urlName¶
This section defines the parameters used to construct the URL for accessing input bathymetry datasets. These datasets can be sourced from either a local directory or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlBat_usr |
myusername |
Username to access the bathymetric datasets from a remote FTP server |
urlBat_pwd |
mypwd |
Password to access the bathymetric datasets from a remote FTP server |
urlBat_urlbase |
file:///scratch/surf/surf_datasets/current/bathymetry |
Parametric URL name (e.g., ftp:/... or file:///...) for the bathymetric datasets |
urlBat_resol |
h |
Name for spatial resolution used to replace the substring (RESOL) in the parametric URL name |
set_dataDownlBat_fileName¶
This section specifies the parameters required to generate the filenames of the input bathymetry datasets. These filenames help identify the relevant files in the storage location.
| Parameter | Value | Description |
|---|---|---|
fileBat_filebase |
GEBCO_2014_2D.nc |
Parametric filename for the source bathymetric datasets |
fileBat_resol |
NOTUSED |
Name for spatial resolution used to replace the substring (RESBAT) in the parametric file name |
fileBat_lcompression |
False |
Indicates if the dataset to download is in gzip compressed files (*.gz) |
fileBat_llonFlip |
False |
Indicates if longitude coordinates are in the 0 to 360 range (True) or -180 to +180 range (False) |
fileBat_llatInv |
False |
Indicates if the dataset contains latitude decreasing through the pole |
fileBat_ldepthIncr |
False |
Indicates if the dataset contains sea floor elevation (positive) that increases with increasing water depth |
fileBat_lkeepSrcFull |
False |
Indicates if the full uncut datasets should be kept on disk after download |
set_dataDownlBat_varName¶
This section outlines the parameters related to the variable names used within the input bathymetry datasets. These variable names are crucial for accurately extracting and utilizing the data within the files.
| Parameter | Value | Description |
|---|---|---|
srcDimBat_lon |
lon |
Name of the dimension for the longitude |
srcDimBat_lat |
lat |
Name of the dimension for the latitude |
srcCrdBat_lon |
lon |
Name of the coordinate variable for the longitude |
srcCrdBat_lat |
lat |
Name of the coordinate variable for the latitude |
srcVarBat_elev |
elevation |
Name of the variable for the Sea Floor Elevation |
| --- |
set_dataDownlTideMesh_urlName¶
This section defines the parameters used to construct the URL for accessing atmospheric meshmask datasets. These datasets can be sourced from either a local directory or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlTideMesh_usr |
myusername |
Username to access the input tidal forcing meshmask datasets from a remote FTP server |
urlTideMesh_pwd |
mypwd |
Password to access the input tidal forcing meshmask datasets from a remote FTP server |
urlTideMesh_urlbase |
file:///scratch/surf/surf_datasets/current/tide/TPXO8_atlas_30_v1_nc |
Parametric URL name (e.g., ftp:/... or file:///...) for the input tidal forcing meshmask datasets |
urlTideMesh_K1 |
NOTUSED |
Name for tidal constituent K1 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_O1 |
NOTUSED |
Name for tidal constituent O1 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_P1 |
NOTUSED |
Name for tidal constituent P1 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_Q1 |
NOTUSED |
Name for tidal constituent Q1 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_K2 |
NOTUSED |
Name for tidal constituent K2 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_M2 |
NOTUSED |
Name for tidal constituent M2 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_N2 |
NOTUSED |
Name for tidal constituent N2 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_S2 |
NOTUSED |
Name for tidal constituent S2 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_M4 |
NOTUSED |
Name for tidal constituent M4 used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_Mm |
NOTUSED |
Name for tidal constituent Mm used to replace the substring (FIELD) on the parametric URL name |
urlTideMesh_Mf |
NOTUSED |
Name for tidal constituent Mf used to replace the substring (FIELD) on the parametric URL name |
set_dataDownlTideMesh_fileName¶
This section specifies the parameters required to generate the filenames of the tidal meshmask datasets. These filenames help identify the relevant files in the storage location.
| Parameter | Value | Description |
|---|---|---|
fileTideMesh_filebase_bathy |
grid_tpxo8(CONS).nc |
Parametric filename for the Zonal Air Velocity datasets before the spinup-time |
fileTideMesh_K1 |
atlas_30_v1 |
Name for tidal constituent K1 used to replace the substring (CONS) in the filename |
fileTideMesh_O1 |
atlas_30_v1 |
Name for tidal constituent O1 used to replace the substring (CONS) in the filename |
fileTideMesh_P1 |
atlas_30_v1 |
Name for tidal constituent P1 used to replace the substring (CONS) in the filename |
fileTideMesh_Q1 |
atlas_30_v1 |
Name for tidal constituent Q1 used to replace the substring (CONS) in the filename |
fileTideMesh_K2 |
atlas_30_v1 |
Name for tidal constituent K2 used to replace the substring (CONS) in the filename |
fileTideMesh_M2 |
atlas_30_v1 |
Name for tidal constituent M2 used to replace the substring (CONS) in the filename |
fileTideMesh_N2 |
atlas_30_v1 |
Name for tidal constituent N2 used to replace the substring (CONS) in the filename |
fileTideMesh_S2 |
atlas_30_v1 |
Name for tidal constituent S2 used to replace the substring (CONS) in the filename |
fileTideMesh_M4 |
atlas_30_v1 |
Name for tidal constituent M4 used to replace the substring (CONS) in the filename |
fileTideMesh_Mm |
NOTUSED |
Name for tidal constituent Mm used to replace the substring (CONS) in the filename |
fileTideMesh_Mf |
NOTUSED |
Name for tidal constituent Mf used to replace the substring (CONS) in the filename |
fileTideMesh_lcompression |
False |
Indicates if the datasets you want to download are gzip compressed files (*.gz) |
fileTideMesh_llonFlip |
True |
Indicates if longitude coordinates are in the 0 to 360 range (True) or -180 to +180 range (False) |
fileTideMesh_llatInv |
False |
Indicates if the dataset contains latitude decreasing through the pole |
fileTideMesh_lkeepSrcFull |
True |
Indicates if the full uncut datasets should be kept on disk after download |
set_dataDownlTideMesh_varName¶
This section outlines the parameters related to the variable names used within the tidal meshmask datasets. These variable names are crucial for accurately extracting and utilizing the data within the files.
| Parameter | Value | Description |
|---|---|---|
srcDimTideMesh_lont |
nx |
Name of the dimension for the longitude of T-points |
srcDimTideMesh_lonu |
nx |
Name of the dimension for the longitude of U-points |
srcDimTideMesh_lonv |
nx |
Name of the dimension for the longitude of V-points |
srcDimTideMesh_latt |
ny |
Name of the dimension for the latitude of T-points |
srcDimTideMesh_latu |
ny |
Name of the dimension for the latitude of U-points |
srcDimTideMesh_latv |
ny |
Name of the dimension for the latitude of V-points |
srcCrdTideMesh_lont |
lon_z |
Name of the variable containing longitude coordinate of T-points |
srcCrdTideMesh_lonu |
lon_u |
Name of the variable containing longitude coordinate of U-points |
srcCrdTideMesh_lonv |
lon_v |
Name of the variable containing longitude coordinate of V-points |
srcCrdTideMesh_latt |
lat_z |
Name of the variable containing latitude coordinate of T-points |
srcCrdTideMesh_latu |
lat_u |
Name of the variable containing latitude coordinate of U-points |
srcCrdTideMesh_latv |
lat_v |
Name of the variable containing latitude coordinate of V-points |
srcVarTideMesh_batt |
hz |
Name of the variable containing the Land Sea Mask of T-points |
srcVarTideMesh_batu |
hu |
Name of the variable containing the Land Sea Mask of U-points |
srcVarTideMesh_batv |
hv |
Name of the variable containing the Land Sea Mask of V-points |
set_dataDownlTide_urlName¶
This section contains the parameters needed to build the URL for accessing tidal fields datasets. The datasets can be retrieved from either a local source or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlTide_usr |
myusername |
Username to access the barotropic tide datasets from a remote server |
urlTide_pwd |
mypwd |
Password to access the barotropic tide datasets from a remote server |
urlTide_urlbase |
file:///scratch/surf/surf_datasets/current/tide/TPXO8_atlas_30_v1_nc |
Base URL for the barotropic tide datasets. Parameters: (CONS) |
urlTide_K1 |
NOTUSED |
Name for tidal constituent K1 used to replace the substring (CONS) |
urlTide_O1 |
NOTUSED |
Name for tidal constituent O1 used to replace the substring (CONS) |
urlTide_P1 |
NOTUSED |
Name for tidal constituent P1 used to replace the substring (CONS) |
urlTide_Q1 |
NOTUSED |
Name for tidal constituent Q1 used to replace the substring (CONS) |
urlTide_K2 |
NOTUSED |
Name for tidal constituent K2 used to replace the substring (CONS) |
urlTide_M2 |
NOTUSED |
Name for tidal constituent M2 used to replace the substring (CONS) |
urlTide_N2 |
NOTUSED |
Name for tidal constituent N2 used to replace the substring (CONS) |
urlTide_S2 |
NOTUSED |
Name for tidal constituent S2 used to replace the substring (CONS) |
urlTide_M4 |
NOTUSED |
Name for tidal constituent M4 used to replace the substring (CONS) |
urlTide_Mm |
NOTUSED |
Name for tidal constituent Mm used to replace the substring (CONS) |
urlTide_Mf |
NOTUSED |
Name for tidal constituent Mf used to replace the substring (CONS) |
| --- |
set_dataDownlTide_fileName¶
This section provides the parameters required to create the filenames for the tidal fields datasets. These filenames are used to locate and manage the specific datasets within your data storage system.
| Parameter | Value | Description |
|---|---|---|
fileTide_filebase_elev |
hf.(CONS)_tpxo8_atlas_30c_v1.nc |
Filename for Tidal elevation datasets |
fileTide_filebase_velU |
uv.(CONS)_tpxo8_atlas_30c_v1.nc |
Filename for Tidal WE transport datasets |
fileTide_filebase_velV |
uv.(CONS)_tpxo8_atlas_30c_v1.nc |
Filename for Tidal SN transport datasets |
fileTide_K1 |
k1 |
Tidal constituent K1 to replace the substring (CONS) |
fileTide_O1 |
o1 |
Tidal constituent O1 to replace the substring (CONS) |
fileTide_P1 |
p1 |
Tidal constituent P1 to replace the substring (CONS) |
fileTide_Q1 |
q1 |
Tidal constituent Q1 to replace the substring (CONS) |
fileTide_K2 |
k2 |
Tidal constituent K2 to replace the substring (CONS) |
fileTide_M2 |
m2 |
Tidal constituent M2 to replace the substring (CONS) |
fileTide_N2 |
n2 |
Tidal constituent N2 to replace the substring (CONS) |
fileTide_S2 |
s2 |
Tidal constituent S2 to replace the substring (CONS) |
fileTide_M4 |
m4 |
Tidal constituent M4 to replace the substring (CONS) |
fileTide_Mm |
NOTUSED |
Tidal constituent Mm not used |
fileTide_Mf |
NOTUSED |
Tidal constituent Mf not used |
fileTide_lcompression |
False |
Indicates if datasets are gzip compressed files (*.gz) |
set_dataDownlTide_varName¶
This section details the parameters for specifying the field names of the tidal datasets. The field names identify the specific variables within the datasets, ensuring proper data extraction and processing.
| Parameter | Value | Description |
|---|---|---|
srcDimTide_lont |
nx |
Name of the dimension for the longitude of T-points |
srcDimTide_lonu |
nx |
Name of the dimension for the longitude of U-points |
srcDimTide_lonv |
nx |
Name of the dimension for the longitude of V-points |
srcDimTide_latt |
ny |
Name of the dimension for the latitude of T-points |
srcDimTide_latu |
ny |
Name of the dimension for the latitude of U-points |
srcDimTide_latv |
ny |
Name of the dimension for the latitude of V-points |
srcCrdTide_lont |
lon_z |
Name of the coordinate variable for the longitude of T-points |
srcCrdTide_lonu |
lon_u |
Name of the coordinate variable for the longitude of U-points |
srcCrdTide_lonv |
lon_v |
Name of the coordinate variable for the longitude of V-points |
srcCrdTide_latt |
lat_z |
Name of the coordinate variable for the latitude of T-points |
srcCrdTide_latu |
lat_u |
Name of the coordinate variable for the latitude of U-points |
srcCrdTide_latv |
lat_v |
Name of the coordinate variable for the latitude of V-points |
srcVarTide_elevIm |
hIm |
Name of the variable for the Tidal elevation complex amplitude (Imag part) of the Lunar diurnal K1 tidal component datasets |
srcVarTide_elevRe |
hRe |
Name of the variable for the Tidal elevation complex amplitude (Real part) of the Lunar diurnal K1 tidal component datasets |
srcVarTide_velUIm |
uIm |
Name of the variable for the Tidal WE transport complex amplitude (Imag part) of the Lunar diurnal K1 tidal component datasets |
srcVarTide_velURe |
uRe |
Name of the variable for the Tidal WE transport complex amplitude (Real part) of the Lunar diurnal K1 tidal component datasets |
srcVarTide_velVIm |
vIm |
Name of the variable for the Tidal SN transport complex amplitude (Imag part) of the Lunar diurnal K1 tidal component datasets |
srcVarTide_velVRe |
vRe |
Name of the variable for the Tidal SN transport complex amplitude (Real part) of the Lunar diurnal K1 tidal component datasets |
set_dataDownlAtmMesh_urlName¶
This section defines the parameters used to construct the URL for accessing atmospheric meshmask datasets. These datasets can be sourced from either a local directory or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlAtmMesh_usr |
myusername |
Username to access the input atmospheric meshmask datasets from a remote FTP server |
urlAtmMesh_pwd |
mypwd |
Password to access the input atmospheric meshmask datasets from a remote FTP server |
urlAtmMesh_urlbase |
file:///scratch/surf/indata_offline/gulfTaranto_20141005/data/data00/indata/atmosphere/srcFull |
Parametric URL for the input atmospheric meshmask datasets. Parameters: (FIELD), YYYY(p)MM(p)DD(p) |
urlAtmMesh_velU |
NOTUSED |
Name for the Zonal Air Velocity used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_velV |
NOTUSED |
Name for the Meridional Air Velocity used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_mslp |
NOTUSED |
Name for the Mean Sea-Level Pressure used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_cloudCov |
NOTUSED |
Name for the Total Cloud Cover used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_temp |
NOTUSED |
Name for the Air Temperature used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_dpTemp |
NOTUSED |
Name for the Dewpoint Temperature used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_prec |
NOTUSED |
Name for the Total Precipitation used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_tauU |
NOTUSED |
Name for the Zonal Wind Stress used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_tauV |
NOTUSED |
Name for the Meridional Wind Stress used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_qtot |
NOTUSED |
Name for the Total Heat Flux used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_qsr |
NOTUSED |
Name for the Solar Radiation Penetration used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_emp |
NOTUSED |
Name for the Mass Flux Exchanged used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_tempS |
NOTUSED |
Name for the Surface Temperature used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_salS |
NOTUSED |
Name for the Surface Salinity used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_umid |
NOTUSED |
Name for the Air Humidity used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_radLW |
NOTUSED |
Name for the Long Wave Radiation used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_radSW |
NOTUSED |
Name for the Short Wave Radiation used to replace the substring (FIELD) on the parametric URL name |
urlAtmMesh_snow |
NOTUSED |
Name for the Solid Precipitation used to replace the substring (FIELD) on the parametric URL name |
set_dataDownlAtmMesh_fileName¶
This section specifies the parameters required to generate the filenames of the atmospheric meshmask datasets. These filenames help identify the relevant files in the storage location.
| Parameter | Value | Description |
|---|---|---|
fileAtmMesh_filebase_velU |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Zonal Air Velocity datasets before the spinup-time (if sbc_iformulat=0,2) |
fileAtmMesh_filebase_velV |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Meridional Air Velocity datasets before the spinup-time (if sbc_iformulat=0,2) |
fileAtmMesh_filebase_mslp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Mean Sea-Level Pressure datasets before the spinup-time (if sbc_iformulat=0 or sbc_aprdyn) |
fileAtmMesh_filebase_cloudCov |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Total Cloud Cover datasets before the spinup-time (if sbc_iformulat=0) |
fileAtmMesh_filebase_temp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Air Temperature datasets before the spinup-time (if sbc_iformulat=0,2) |
fileAtmMesh_filebase_dpTemp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Dewpoint Temperature datasets before the spinup-time (if sbc_iformulat=0) |
fileAtmMesh_filebase_prec |
YYYY(i)MM(i)DD(i)_YYYY(i+1)MM(i+1)DD(i+1)-ECMWF---AM025-MEDATL-bYYYY(i)MM(i)DD(i)_fc00-fv02.00_PREC.nc |
Parametric filename for the Total Precipitation datasets before the spinup-time (if sbc_iformulat=0,2) |
fileAtmMesh_filebase_tauU |
NOTUSED |
Parametric filename for the Zonal Wind Stress datasets before the spinup-time (if sbc_iformulat=1) |
fileAtmMesh_filebase_tauV |
NOTUSED |
Parametric filename for the Meridional Wind Stress datasets before the spinup-time (if sbc_iformulat=1) |
fileAtmMesh_lcompression |
False |
(=True) if the datasets you want to download are gzip compressed files (*.gz) |
fileAtmMesh_llonFlip |
False |
(=True) if the longitude coordinate is in the 0 to 360 range, (=False) if longitude is in -180:+180 range |
fileAtmMesh_llatInv |
True |
(=True) if the dataset contains latitude decreasing through the pole |
fileAtmMesh_lkeepSrcFull |
True |
(=True) if you want to keep on your disk the downloaded uncutted datasets |
set_dataDownlAtmMesh_varName¶
This section outlines the parameters related to the variable names used within the atmospheric meshmask datasets. These variable names are crucial for accurately extracting and utilizing the data within the files.
| Parameter | Value | Description |
|---|---|---|
srcDimAtmMesh_lon |
lon |
Name of the dimension for the longitude |
srcDimAtmMesh_lat |
lat |
Name of the dimension for the latitude |
srcDimAtmMesh_time |
time |
Name of the dimension for the time |
srcCrdAtmMesh_lon |
lon |
Name of the coordinate variable containing the longitude |
srcCrdAtmMesh_lat |
lat |
Name of the coordinate variable containing the latitude |
srcCrdAtmMesh_time |
time |
Name of the variable containing the time coordinate |
srcVarAtmMesh_mask |
LSM |
Name of the variable containing the Land Sea Mask (if sbc_iformulat=0,2) |
srcVarAtmMesh_lont |
NOTUSED |
Name of the variable containing longitude coordinate of T-points (if sbc_iformulat=1) |
srcVarAtmMesh_lonu |
NOTUSED |
Name of the variable containing longitude coordinate of U-points (if sbc_iformulat=1) |
srcVarAtmMesh_lonv |
NOTUSED |
Name of the variable containing longitude coordinate of V-points (if sbc_iformulat=1) |
srcVarAtmMesh_latt |
NOTUSED |
Name of the variable containing latitude coordinate of T-points (if sbc_iformulat=1) |
srcVarAtmMesh_latu |
NOTUSED |
Name of the variable containing latitude coordinate of U-points (if sbc_iformulat=1) |
srcVarAtmMesh_latv |
NOTUSED |
Name of the variable containing latitude coordinate of V-points (if sbc_iformulat=1) |
srcVarAtmMesh_maskt |
NOTUSED |
Name of the variable containing the Land Sea Mask of T-points (if sbc_iformulat=1) |
srcVarAtmMesh_masku |
NOTUSED |
Name of the variable containing the Land Sea Mask of U-points (if sbc_iformulat=1) |
srcVarAtmMesh_maskv |
NOTUSED |
Name of the variable containing the Land Sea Mask of V-points (if sbc_iformulat=1) |
set_dataDownlAtm_urlName_preSpinup¶
This section contains the parameters needed to build the URL for accessing pre-spinup atmospheric fields datasets. The datasets can be retrieved from either a local source or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlAtmPre_usr |
myusername |
Username to access the input atmospheric datasets before the spinup-time from a remote FTP server |
urlAtmPre_pwd |
mypwd |
Password to access the input atmospheric datasets before the spinup-time from a remote FTP server |
urlAtmPre_urlbase |
file:///scratch/surf/indata_offline/gulfTaranto_20141005/data/data00/indata/atmosphere/srcFull |
Parametric URL name for atmospheric datasets before the spinup-time. Parameters: (FIELD),YYYY(p)MM(p)DD(p) |
urlAtmPre_velU |
v10m |
Name for the Zonal Air Velocity used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_velV |
v10m |
Name for the Meridional Air Velocity used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_mslp |
mslp |
Name for the Mean Sea-Level Pressure used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_cloudCov |
tcc |
Name for the Total Cloud Cover used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_temp |
t2m |
Name for the Air Temperature used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_dpTemp |
d2m |
Name for the Dewpoint Temperature used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_prec |
precip |
Name for the Total Precipitation used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_tauU |
tauU |
Name for the Zonal Wind Stress used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_tauV |
tauV |
Name for the Meridional Wind Stress used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_qtot |
qtot |
Name for the Total Heat Flux used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_qsr |
qsr |
Name for the Solar Radiation Penetration used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_emp |
emp |
Name for the Mass Flux Exchanged used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_tempS |
sst |
Name for the Surface Temperature used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_salS |
sss |
Name for the Surface Salinity used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_umid |
umid |
Name for the Air Umidity used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_radLW |
lwrd |
Name for the Long Wave Radiation used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_radSW |
swrd |
Name for the Short Wave Radiation used to replace the substring (FIELD) on the parametric URL name |
urlAtmPre_snow |
snow |
Name for the Solid Precipitation used to replace the substring (FIELD) on the parametric URL name |
set_dataDownlAtm_fileName_preSpinup¶
This section provides the parameters required to create the filenames for the pre-spinup atmospheric fields datasets. These filenames are used to locate and manage the specific datasets within your data storage system.
| Parameter | Value | Description |
|---|---|---|
fileAtmPre_lcompression |
False |
(=True) if the datasets you want to download are gzip compressed files (*.gz) |
fileAtmPre_iProdDate |
1 |
Type of production (bulletin) date (=1):fixProdDate, (=2):varProdDate-DayofWeek |
fileAtmPre_dateProdFixed |
20170801 |
Production date used in the URL/files (if iProdDate=1) |
fileAtmPre_dateProdDayofWeek |
Wednesday |
Production date used in the URL/files (if iProdDate=2) |
fileAtmPre_filebase_velU |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Zonal Air Velocity datasets before the spinup-time (if sbc_iformulat=0,2) |
fileAtmPre_filebase_velV |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Meridional Air Velocity datasets before the spinup-time (if sbc_iformulat=0,2) |
fileAtmPre_filebase_mslp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Mean Sea-Level Pressure datasets before the spinup-time (if sbc_iformulat=0 or/and sbc_aprdyn) |
fileAtmPre_filebase_cloudCov |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Total Cloud Cover datasets before the spinup-time (if sbc_iformulat=0) |
fileAtmPre_filebase_temp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Air Temperature datasets before the spinup-time (if sbc_iformulat=0,2) |
fileAtmPre_filebase_dpTemp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Dewpoint Temperature datasets before the spinup-time (if sbc_iformulat=0) |
fileAtmPre_filebase_prec |
YYYY(i)MM(i)DD(i)_YYYY(i+1)MM(i+1)DD(i+1)-ECMWF---AM025-MEDATL-bYYYY(i)MM(i)DD(i)_fc00-fv02.00_PREC.nc |
Parametric filename for the Total Precipitation datasets before the spinup-time (if sbc_iformulat=0,2) |
fileAtmPre_filebase_tauU |
NOTUSED |
Parametric filename for the Zonal Wind Stress datasets before the spinup-time (if sbc_iformulat=1) |
fileAtmPre_filebase_tauV |
NOTUSED |
Parametric filename for the Meridional Wind Stress datasets before the spinup-time (if sbc_iformulat=1) |
fileAtmPre_filebase_qtot |
NOTUSED |
Parametric filename for the Total Heat Flux datasets before the spinup-time (if sbc_iformulat=1) |
set_dataDownlAtm_varName_preSpinup¶
This section details the parameters for specifying the field names of the pre-spinup atmospheric datasets. The field names identify the specific variables within the datasets, ensuring proper data extraction and processing.
set_dataDownlAtm_varName_preSpinup¶
| Parameter | Value | Description |
|---|---|---|
srcDimAtmPre_lon |
lon |
Name of the dimension for the longitude (if sbc_iformulat=0,2) |
srcDimAtmPre_lont |
NOTUSED |
Name of the dimension for the longitude of T-points (if sbc_iformulat=1) |
srcDimAtmPre_lonu |
NOTUSED |
Name of the dimension for the longitude of U-points (if sbc_iformulat=1) |
srcDimAtmPre_lonv |
NOTUSED |
Name of the dimension for the longitude of V-points (if sbc_iformulat=1) |
srcDimAtmPre_lat |
lat |
Name of the dimension for the latitude (if sbc_iformulat=0,2) |
srcDimAtmPre_latt |
NOTUSED |
Name of the dimension for the latitude of T-points (if sbc_iformulat=1) |
srcDimAtmPre_latu |
NOTUSED |
Name of the dimension for the latitude of U-points (if sbc_iformulat=1) |
srcDimAtmPre_latv |
NOTUSED |
Name of the dimension for the latitude of V-points (if sbc_iformulat=1) |
srcDimAtmPre_time |
time |
Name of the dimension for the time |
srcCrdAtmPre_lon |
lon |
Name of the coordinate variable containing the longitude (if sbc_iformulat=0,2) |
srcCrdAtmPre_lont |
NOTUSED |
Name of the coordinate variable containing the longitude of T-points (if sbc_iformulat=1) |
srcCrdAtmPre_lonu |
NOTUSED |
Name of the coordinate variable containing the longitude of U-points (if sbc_iformulat=1) |
srcCrdAtmPre_lonv |
NOTUSED |
Name of the coordinate variable containing the longitude of V-points (if sbc_iformulat=1) |
srcCrdAtmPre_lat |
lat |
Name of the coordinate variable containing the latitude (if sbc_iformulat=0,2) |
srcCrdAtmPre_latt |
NOTUSED |
Name of the coordinate variable containing the latitude of T-points (if sbc_iformulat=1) |
srcCrdAtmPre_latu |
NOTUSED |
Name of the coordinate variable containing the latitude of U-points (if sbc_iformulat=1) |
srcCrdAtmPre_latv |
NOTUSED |
Name of the coordinate variable containing the latitude of V-points (if sbc_iformulat=1) |
srcCrdAtmPre_time |
time |
Name of the variable containing time coordinate |
srcVarAtmPre_velU |
U10M |
Name of the variable for 10 metre zonal component of air velocity (if sbc_iformulat=0,2) |
srcVarAtmPre_velV |
V10M |
Name of the variable for 10 metre meridional component of air velocity (if sbc_iformulat=0,2) |
srcVarAtmPre_mslp |
MSL |
Name of the variable for Mean Sea-Level Pressure (if sbc_iformulat=0 or/and sbc_aprdyn) |
srcVarAtmPre_cloudCov |
TCC |
Name of the variable for Total Cloud Cover (if sbc_iformulat=0) |
srcVarAtmPre_temp |
T2M |
Name of the variable for 2 metre temperature (if sbc_iformulat=0,2) |
srcVarAtmPre_dpTemp |
D2M |
Name of the variable for 2 metre Dewpoint Temperature (if sbc_iformulat=0) |
srcVarAtmPre_prec |
PREC |
Name of the variable for Total Precipitation (if sbc_iformulat=0,2) |
srcVarAtmPre_tauU |
NOTUSED |
Name of the variable for tauU (if sbc_iformulat=1) |
srcVarAtmPre_tauV |
NOTUSED |
Name of the variable for tauV (if sbc_iformulat=1) |
srcVarAtmPre_qtot |
NOTUSED |
Name of the variable for qtot (if sbc_iformulat=1) |
srcVarAtmPre_qsr |
NOTUSED |
Name of the variable for qsr (if sbc_iformulat=1) |
srcVarAtmPre_emp |
NOTUSED |
Name of the variable for emp (if sbc_iformulat=1) |
srcVarAtmPre_tempS |
NOTUSED |
Name of the variable for tempS (if sbc_iformulat=1) |
srcVarAtmPre_salS |
NOTUSED |
Name of the variable for salS (if sbc_iformulat=1) |
srcVarAtmPre_umid |
NOTUSED |
Name of the variable for 2 metre umidity (if sbc_iformulat=2) |
srcVarAtmPre_radLW |
NOTUSED |
Name of the variable for Long Wave Radiation (if sbc_iformulat=2) |
srcVarAtmPre_radSW |
NOTUSED |
Name of the variable for Short Wave Radiation (if sbc_iformulat=2) |
srcVarAtmPre_snow |
NOTUSED |
Name of the variable for Solid Precipitation (if sbc_iformulat=2) |
set_dataDownlAtm_urlName_postSpinup¶
This section contains the parameters needed to build the URL for accessing post-spinup atmospheric fields datasets. The datasets can be retrieved from either a local source or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlAtmPost_usr |
myusername |
Username to access the input atmospheric datasets after the spinup-time from a remote ftp server |
urlAtmPost_pwd |
mypwd |
Password to access the input atmospheric datasets after the spinup-time from a remote ftp server |
urlAtmPost_urlbase |
file:///scratch/surf/indata_offline/gulfTaranto_20141005/data/data00/indata/atmosphere/srcFull |
Parametric urlname (i.e. ftp:/... or file:///...) for atmospheric datasets after the spinup-time. Parameters: (FIELD),YYYY(p)MM(p)DD(p) |
urlAtmPost_velU |
v10m |
Name for the Zonal Air Velocity used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_velV |
v10m |
Name for the Meridional Air Velocity used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_mslp |
mslp |
Name for the Mean Sea-Level Pressure used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_cloudCov |
tcc |
Name for the Total Cloud Cover used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_temp |
t2m |
Name for the Air Temperature used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_dpTemp |
d2m |
Name for the Dewpoint Temperature used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_prec |
precip |
Name for the Total Precipitation used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_tauU |
tauU |
Name for the Zonal Wind Stress used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_tauV |
tauV |
Name for the Meridional Wind Stress used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_qtot |
qtot |
Name for the Total Heat Flux used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_qsr |
qsr |
Name for the Solar Radiation Penetration used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_emp |
emp |
Name for the Mass Flux Exchanged used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_tempS |
sst |
Name for the Surface Temperature used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_salS |
sss |
Name for the Surface Salinity used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_umid |
umid |
Name for the Air Umidity used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_radLW |
lwrd |
Name for the Long Wave Radiation used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_radSW |
swrd |
Name for the Short Wave Radiation used to replace the substring (FIELD) on the parametrinc urlname |
urlAtmPost_snow |
snow |
Name for the Solid Precipitation used to replace the substring (FIELD) on the parametrinc urlname |
set_dataDownlAtm_fileName_postSpinup¶
This section provides the parameters required to create the filenames for the post-spinup atmospheric fields datasets. These filenames are used to locate and manage the specific datasets within your data storage system.
| Parameter | Value | Description |
|---|---|---|
fileAtmPost_lcompression |
False |
Enables if datasets you want to download are gzip compressed files (*.gz) |
fileAtmPost_iProdDate |
1 |
Type of production (bulletin) date (=1):fixProdDate, (=2):varProdDate-DayofWeek |
fileAtmPost_dateProdFixed |
20170801 |
Production date used in the URL/files (if iProdDate=1) |
fileAtmPost_dateProdDayofWeek |
Wednesday |
Production date used in the URL/files (if iProdDate=2) |
fileAtmPost_filebase_velU |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Zonal Air Velocity datasets after the spinup-time (if sbc_iformulat=0,2) |
fileAtmPost_filebase_velV |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Meridional Air Velocity datasets after the spinup-time (if sbc_iformulat=0,2) |
fileAtmPost_filebase_mslp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Mean Sea-Level Pressure datasets after the spinup-time (if sbc_iformulat=0 or/and sbc_aprdyn) |
fileAtmPost_filebase_cloudCov |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Total Cloud Cover datasets after the spinup-time (if sbc_iformulat=0) |
fileAtmPost_filebase_temp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Air Temperature datasets after the spinup-time (if sbc_iformulat=0,2) |
fileAtmPost_filebase_dpTemp |
YYYY(i)MM(i)DD(i)-ECMWF---AM0125-MEDATL-bYYYY(i+1)MM(i+1)DD(i+1)_an-fv05.00.nc |
Parametric filename for the Dewpoint Temperature datasets after the spinup-time (if sbc_iformulat=0) |
fileAtmPost_filebase_prec |
YYYY(i)MM(i)DD(i)_YYYY(i+1)MM(i+1)DD(i+1)-ECMWF---AM025-MEDATL-bYYYY(i)MM(i)DD(i)_fc00-fv02.00_PREC.nc |
Parametric filename for the Total Precipitation datasets after the spinup-time (if sbc_iformulat=0,2) |
fileAtmPost_filebase_tauU |
NOTUSED |
Parametric filename for the Zonal Wind Stress datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_tauV |
NOTUSED |
Parametric filename for the Meridional Wind Stress datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_qtot |
NOTUSED |
Parametric filename for the Total Heat Flux datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_qsr |
NOTUSED |
Parametric filename for the Solar Radiation Penetration datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_emp |
NOTUSED |
Parametric filename for the Mass Flux Exchanged datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_tempS |
NOTUSED |
Parametric filename for the Surface Temperature datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_salS |
NOTUSED |
Parametric filename for the Surface Salinity datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_umid |
NOTUSED |
Parametric filename for the Air Umidity datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_radLW |
NOTUSED |
Parametric filename for the Long Wave Radiation datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_radSW |
NOTUSED |
Parametric filename for the Short Wave Radiation datasets after the spinup-time (if sbc_iformulat=1) |
fileAtmPost_filebase_snow |
NOTUSED |
Parametric filename for the Solid Precipitation datasets after the spinup-time (if sbc_iformulat=1) |
set_dataDownlAtm_varName_postSpinup¶
This section details the parameters for specifying the field names of the post-spinup atmospheric datasets. The field names identify the specific variables within the datasets, ensuring proper data extraction and processing.
| Parameter | Value | Description |
|---|---|---|
srcDimAtmPost_lon |
lon |
Name of the dimension for the longitude (if sbc_iformulat=0,2) |
srcDimAtmPost_lont |
NOTUSED |
Name of the dimension for the longitude of T-points (if sbc_iformulat=1) |
srcDimAtmPost_lonu |
NOTUSED |
Name of the dimension for the longitude of U-points (if sbc_iformulat=1) |
srcDimAtmPost_lonv |
NOTUSED |
Name of the dimension for the longitude of V-points (if sbc_iformulat=1) |
srcDimAtmPost_lat |
lat |
Name of the dimension for the latitude (if sbc_iformulat=0,2) |
srcDimAtmPost_latt |
NOTUSED |
Name of the dimension for the latitude of T-points (if sbc_iformulat=1) |
srcDimAtmPost_latu |
NOTUSED |
Name of the dimension for the latitude of U-points (if sbc_iformulat=1) |
srcDimAtmPost_latv |
NOTUSED |
Name of the dimension for the latitude of V-points (if sbc_iformulat=1) |
srcDimAtmPost_time |
time |
Name of the dimension for the time |
srcCrdAtmPost_lon |
lon |
Name of the coordinate variable containing the longitude (if sbc_iformulat=0,2) |
srcCrdAtmPost_lont |
NOTUSED |
Name of the coordinate variable containing the longitude of T-points (if sbc_iformulat=1) |
srcCrdAtmPost_lonu |
NOTUSED |
Name of the coordinate variable containing the longitude of U-points (if sbc_iformulat=1) |
srcCrdAtmPost_lonv |
NOTUSED |
Name of the coordinate variable containing the longitude of V-points (if sbc_iformulat=1) |
srcCrdAtmPost_lat |
lat |
Name of the coordinate variable containing the latitude (if sbc_iformulat=0,2) |
srcCrdAtmPost_latt |
NOTUSED |
Name of the coordinate variable containing the latitude of T-points (if sbc_iformulat=1) |
srcCrdAtmPost_latu |
NOTUSED |
Name of the coordinate variable containing the latitude of U-points (if sbc_iformulat=1) |
srcCrdAtmPost_latv |
NOTUSED |
Name of the coordinate variable containing the latitude of V-points (if sbc_iformulat=1) |
srcCrdAtmPost_time |
time |
Name of the variable containing time coordinate |
srcVarAtmPost_velU |
U10M |
Name of the variable for 10 metre zonal component of air velocity (if sbc_iformulat=0,2) |
srcVarAtmPost_velV |
V10M |
Name of the variable for 10 metre meridional component of air velocity (if sbc_iformulat=0,2) |
srcVarAtmPost_mslp |
MSL |
Name of the variable for Mean Sea-Level Pressure (if sbc_iformulat=0 or/and sbc_aprdyn) |
srcVarAtmPost_cloudCov |
TCC |
Name of the variable for Total Cloud Cover (if sbc_iformulat=0) |
srcVarAtmPost_temp |
T2M |
Name of the variable for 2 metre temperature (if sbc_iformulat=0,2) |
srcVarAtmPost_dpTemp |
D2M |
Name of the variable for 2 metre Dewpoint Temperature (if sbc_iformulat=0) |
srcVarAtmPost_prec |
PREC |
Name of the variable for Total Precipitation (if sbc_iformulat=0,2) |
srcVarAtmPost_tauU |
NOTUSED |
Name of the variable for tauU (if sbc_iformulat=1) |
srcVarAtmPost_tauV |
NOTUSED |
Name of the variable for tauV (if sbc_iformulat=1) |
srcVarAtmPost_qtot |
NOTUSED |
Name of the variable for qtot (if sbc_iformulat=1) |
srcVarAtmPost_qsr |
NOTUSED |
Name of the variable for qsr (if sbc_iformulat=1) |
srcVarAtmPost_emp |
NOTUSED |
Name of the variable for emp (if sbc_iformulat=1) |
srcVarAtmPost_tempS |
NOTUSED |
Name of the variable for tempS (if sbc_iformulat=1) |
srcVarAtmPost_salS |
NOTUSED |
Name of the variable for salS (if sbc_iformulat=1) |
srcVarAtmPost_umid |
NOTUSED |
Name of the variable for 2 metre humidity (if sbc_iformulat=2) |
srcVarAtmPost_radLW |
NOTUSED |
Name of the variable for Long Wave Radiation (if sbc_iformulat=2) |
srcVarAtmPost_radSW |
NOTUSED |
Name of the variable for Short Wave Radiation (if sbc_iformulat=2) |
srcVarAtmPost_snow |
NOTUSED |
Name of the variable for Solid Precipitation (if sbc_iformulat=2) |
set_dataDownlOceICMesh_urlName¶
This section defines the parameters used to construct the URL for accessing Ocean Initial Condition meshmask datasets. These datasets can be sourced from either a local directory or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlOceICMesh_usr |
myusername |
Username to access the input ocean IC meshmask datasets from a remote FTP server |
urlOceICMesh_pwd |
mypwd |
Password to access the input ocean IC meshmask datasets from a remote FTP server |
urlOceICMesh_urlbase |
file:///scratch/surf/indata_offline/gulfTaranto_20141005/data/data00/indata/oceanIC/srcFull |
Parametric URL for the input ocean IC meshmask datasets. Parameters: (FIELD) |
urlOceICMesh_lont |
NOTUSED |
Name for the longitude-Tgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_lonu |
NOTUSED |
Name for the longitude-Ugrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_lonv |
NOTUSED |
Name for the longitude-Vgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_lonf |
NOTUSED |
Name for the longitude-Fgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_latt |
NOTUSED |
Name for the latitude-Tgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_latu |
NOTUSED |
Name for the latitude-Ugrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_latv |
NOTUSED |
Name for the latitude-Vgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_latf |
NOTUSED |
Name for the latitude-Fgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_deptht1d |
NOTUSED |
Name for the depth-Tgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_depthw1d |
NOTUSED |
Name for the depth-Wgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_xscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid x-direction used to replace the substring (FIELD) on the URL |
urlOceICMesh_xscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid x-direction used to replace the substring (FIELD) on the URL |
urlOceICMesh_xscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid x-direction used to replace the substring (FIELD) on the URL |
urlOceICMesh_yscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid y-direction used to replace the substring (FIELD) on the URL |
urlOceICMesh_yscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid y-direction used to replace the substring (FIELD) on the URL |
urlOceICMesh_yscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid y-direction used to replace the substring (FIELD) on the URL |
urlOceICMesh_maskt |
NOTUSED |
Name for the LandSea-mask-Tgrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_masku |
NOTUSED |
Name for the LandSea-mask-Ugrid used to replace the substring (FIELD) on the parametric URL |
urlOceICMesh_maskv |
NOTUSED |
Name for the LandSea-mask-Vgrid used to replace the substring (FIELD) on the parametric URL |
set_dataDownlOceICMesh_fileName¶
This section specifies the parameters required to generate the filenames of the Ocean Initial Condition meshmask datasets. These filenames help identify the relevant files in the storage location.
| Parameter | Value | Description |
|---|---|---|
fileOceICMesh_filebase |
meshmask_SYS4a3_IONIAN.nc |
Parametric filename for ocean IC meshmask input datasets. Parameters: (FIELD) |
fileOceICMesh_lont |
NOTUSED |
Name for the longitude-Tgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_lonu |
NOTUSED |
Name for the longitude-Ugrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_lonv |
NOTUSED |
Name for the longitude-Vgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_lonf |
NOTUSED |
Name for the longitude-Fgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_latt |
NOTUSED |
Name for the latitude-Tgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_latu |
NOTUSED |
Name for the latitude-Ugrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_latv |
NOTUSED |
Name for the latitude-Vgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_latf |
NOTUSED |
Name for the latitude-Fgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_deptht1d |
NOTUSED |
Name for the depth-Tgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_depthw1d |
NOTUSED |
Name for the depth-Wgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_xscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid x-direction used to replace the substring (FIELD) on the filename |
fileOceICMesh_xscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid x-direction used to replace the substring (FIELD) on the filename |
fileOceICMesh_xscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid x-direction used to replace the substring (FIELD) on the filename |
fileOceICMesh_yscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid y-direction used to replace the substring (FIELD) on the filename |
fileOceICMesh_yscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid y-direction used to replace the substring (FIELD) on the filename |
fileOceICMesh_yscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid y-direction used to replace the substring (FIELD) on the filename |
fileOceICMesh_maskt |
NOTUSED |
Name for the LandSea-mask-Tgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_masku |
NOTUSED |
Name for the LandSea-mask-Ugrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_maskv |
NOTUSED |
Name for the LandSea-mask-Vgrid used to replace the substring (FIELD) on the parametric filename |
fileOceICMesh_lcompression |
False |
(=True) if the datasets you want to download are gzip compressed files (*.gz) |
fileOceICMesh_llonFlip |
False |
(=True) if the longitude coord. is in the 0 to 360 range, (=False) if in -180:+180 range |
fileOceICMesh_llatInv |
False |
(=True) if the dataset contains latitude decreasing through the pole |
fileOceICMesh_lstagC |
True |
(=True) if the input fields are defined on a staggered Arakawa C grid, (=False) if on T grid |
fileOceICMesh_lRegGrid |
True |
(=True) for REGULAR SPHERICAL GRID, UV-rotation not activated, (=False) for CURVILINEAR GRID |
fileOceICMesh_lkeepSrcFull |
True |
(=True) if you want to keep in your disk the downloaded uncutted datasets |
set_dataDownlOceICMesh_varName¶
This section outlines the parameters related to the variable names used within the Ocean Initial Condition meshmask datasets. These variable names are crucial for accurately extracting and utilizing the data within the files.
| Parameter | Value | Description |
|---|---|---|
srcDimOceICMesh_lont |
x |
Name of the dimension for the longitude of T-points |
srcDimOceICMesh_lonu |
x |
Name of the dimension for the longitude of U-points |
srcDimOceICMesh_lonv |
x |
Name of the dimension for the longitude of V-points |
srcDimOceICMesh_lonf |
x |
Name of the dimension for the longitude of F-points |
srcDimOceICMesh_lonw |
x |
Name of the dimension for the longitude of W-points |
srcDimOceICMesh_latt |
y |
Name of the dimension for the latitude of T-points |
srcDimOceICMesh_latu |
y |
Name of the dimension for the latitude of U-points |
srcDimOceICMesh_latv |
y |
Name of the dimension for the latitude of V-points |
srcDimOceICMesh_latf |
y |
Name of the dimension for the latitude of F-points |
srcDimOceICMesh_latw |
y |
Name of the dimension for the latitude of W-points |
srcDimOceICMesh_deptht |
z |
Name of the dimension for the depth of T-points |
srcDimOceICMesh_depthu |
z |
Name of the dimension for the depth of U-points |
srcDimOceICMesh_depthv |
z |
Name of the dimension for the depth of V-points |
srcDimOceICMesh_depthw |
z |
Name of the dimension for the depth of W-points |
srcDimOceICMesh_time |
t |
Name of the dimension for the time |
srcCrdOceICMesh_lont |
nav_lon |
Name of the coordinate variable for the longitude of T-points |
srcCrdOceICMesh_lonu |
nav_lon |
Name of the coordinate variable for the longitude of U-points |
srcCrdOceICMesh_lonv |
nav_lon |
Name of the coordinate variable for the longitude of V-points |
srcCrdOceICMesh_lonf |
nav_lon |
Name of the coordinate variable for the longitude of F-points |
srcCrdOceICMesh_latt |
nav_lat |
Name of the coordinate variable for the latitude of T-points |
srcCrdOceICMesh_latu |
nav_lat |
Name of the coordinate variable for the latitude of U-points |
srcCrdOceICMesh_latv |
nav_lat |
Name of the coordinate variable for the latitude of V-points |
srcCrdOceICMesh_latf |
nav_lat |
Name of the coordinate variable for the latitude of F-points |
srcCrdOceICMesh_deptht |
nav_lev |
Name of the coordinate variable for the depth of T-points |
srcCrdOceICMesh_depthw |
nav_lev |
Name of the coordinate variable for the depth of W-points |
srcCrdOceICMesh_time |
time_counter |
Name of the coordinate variable for the time |
srcVarOceICMesh_lont |
glamt |
Name of the variable containing the longitude of T-points |
srcVarOceICMesh_lonu |
glamu |
Name of the variable containing the longitude of U-points |
srcVarOceICMesh_lonv |
glamv |
Name of the variable containing the longitude of V-points |
srcVarOceICMesh_lonf |
glamf |
Name of the variable containing the longitude of F-points |
srcVarOceICMesh_latt |
gphit |
Name of the variable containing the latitude of T-points |
srcVarOceICMesh_latu |
gphiu |
Name of the variable containing the latitude of U-points |
srcVarOceICMesh_latv |
gphiv |
Name of the variable containing the latitude of V-points |
srcVarOceICMesh_latf |
gphif |
Name of the variable containing the latitude of F-points |
srcVarOceICMesh_deptht1d |
gdept_0 |
Name of the variable containing depth coordinate |
srcVarOceICMesh_depthw1d |
gdepw_0 |
Name of the variable containing depth coordinate |
srcVarOceICMesh_xscalfctt |
e1t |
Name of the scale factors in zonal direction |
srcVarOceICMesh_xscalfctu |
e1u |
Name of the scale factors in zonal direction |
srcVarOceICMesh_xscalfctv |
e1v |
Name of the scale factors in zonal direction |
srcVarOceICMesh_yscalfctt |
e2t |
Name of the scale factors in meridional direction |
srcVarOceICMesh_yscalfctu |
e2u |
Name of the scale factors in meridional direction |
srcVarOceICMesh_yscalfctv |
e2v |
Name of the scale factors in meridional direction |
srcVarOceICMesh_maskt |
tmask |
Name of the land-sea-mask on T-points |
srcVarOceICMesh_masku |
umask |
Name of the land-sea-mask on U-points |
srcVarOceICMesh_maskv |
vmask |
Name of the land-sea-mask on V-points |
set_dataDownlOceIC_urlName¶
This section contains the parameters needed to build the URL for accessing Ocean Initial Condition fields datasets. The datasets can be retrieved from either a local source or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlOceIC_usr |
myusername |
Username to access the input ocean IC datasets from a remote FTP server |
urlOceIC_pwd |
mypwd |
Password to access the input ocean IC datasets from a remote FTP server |
urlOceIC_urlbase |
file:///scratch/surf/indata_offline/gulfTaranto_20141005/data/data00/indata/oceanIC/srcFull |
Parametric URL for the input ocean IC datasets. Parameters: (FIELD), YYYY(p)MM(p)DD(p), YYYY(i)MM(i)DD(i), YYYY(i-1)MM(i-1)DD(i-1), YYYY(i+1)MM(i+1)DD(i+1) |
urlOceIC_temp |
NOTUSED |
Name for the Temperature used to replace the substring (FIELD) on the parametric URL |
urlOceIC_sal |
NOTUSED |
Name for the Salinity used to replace the substring (FIELD) on the parametric URL |
urlOceIC_ssh |
NOTUSED |
Name for the Sea Surface Height used to replace the substring (GRID) on the parametric URL |
urlOceIC_velU |
NOTUSED |
Name for the Zonal Current used to replace the substring (GRID) on the parametric URL |
urlOceIC_velV |
NOTUSED |
Name for the Meridional Current used to replace the substring (FIELD) on the parametric URL |
urlOceIC_tempGrid |
NOTUSED |
Name for the Temperature used to replace the substring (GRID) on the parametric URL |
urlOceIC_salGrid |
NOTUSED |
Name for the Salinity used to replace the substring (GRID) on the parametric URL |
urlOceIC_sshGrid |
NOTUSED |
Name for the Sea Surface Height used to replace the substring (GRID) on the parametric URL |
urlOceIC_velUGrid |
NOTUSED |
Name for the Zonal Current used to replace the substring (GRID) on the parametric URL |
urlOceIC_velVGrid |
NOTUSED |
Name for the Meridional Current used to replace the substring (GRID) on the parametric URL |
set_dataDownlOceIC_fileName¶
This section provides the parameters required to create the filenames for the pre-spinup Ocean Initial Condition fields datasets. These filenames are used to locate and manage the specific datasets within your data storage system.
| Parameter | Value | Description |
|---|---|---|
fileOceIC_filebase |
EXP1_EAS1_1d_YYYY(i)MM(i)DD(i)_YYYY(i+1)MM(i+1)DD(i+1)_(GRID)_IONIAN.nc |
Parametric filename for ocean IC input data. Parameters: (GRID), (FIELD), YYYY(p)MM(p)DD(p), YYYY(i)MM(i)DD(i), YYYY(i-1)MM(i-1)DD(i-1), YYYY(i+1)MM(i+1)DD(i+1) |
fileOceIC_iProdDate |
1 |
Filename format to be downloaded (=1): fixProdDate, (=2): varProdDate-DayofWeek |
fileOceIC_dateProdFixed |
20170801 |
Datasets production (if iProdDate=1) used in the URL/files |
fileOceIC_dateProdDayofWeek |
Wednesday |
Datasets production (if iProdDate=2) used in the URL/files |
fileOceIC_temp |
TEMP |
Name for the Temperature used to replace the substring (FIELD) on the parametric filename |
fileOceIC_sal |
PSAL |
Name for the Salinity used to replace the substring (FIELD) on the parametric filename |
fileOceIC_ssh |
ASLV |
Name for the Sea Surface Height used to replace the substring (FIELD) on the parametric filename |
fileOceIC_velU |
UCOM |
Name for the Zonal Current used to replace the substring (FIELD) on the parametric filename |
fileOceIC_velV |
VCOM |
Name for the Meridional Current used to replace the substring (FIELD) on the parametric filename |
fileOceIC_tempGrid |
grid_T |
Name for the Temperature used to replace the substring (GRID) on the parametric filename |
fileOceIC_salGrid |
grid_T |
Name for the Salinity used to replace the substring (GRID) on the parametric filename |
fileOceIC_sshGrid |
grid_T |
Name for the Sea Surface Height used to replace the substring (GRID) on the parametric filename |
fileOceIC_velUGrid |
grid_U |
Name for the Zonal Current used to replace the substring (GRID) on the parametric filename |
fileOceIC_velVGrid |
grid_V |
Name for the Meridional Current used to replace the substring (GRID) on the parametric filename |
fileOceIC_lcompression |
False |
Enables if datasets you want to download are gzip compressed files (*.gz) |
set_dataDownlOceIC_varName¶
This section details the parameters for specifying the field names of the Ocean Initial Condition datasets. The field names identify the specific variables within the datasets, ensuring proper data extraction and processing.
| Parameter | Value | Description |
|---|---|---|
srcDimOceIC_lont |
x |
Name of the dimension for the longitude of T-points |
srcDimOceIC_lonu |
x |
Name of the dimension for the longitude of U-points |
srcDimOceIC_lonv |
x |
Name of the dimension for the longitude of V-points |
srcDimOceIC_lonw |
x |
Name of the dimension for the longitude of W-points |
srcDimOceIC_latt |
y |
Name of the dimension for the latitude of T-points |
srcDimOceIC_latu |
y |
Name of the dimension for the latitude of U-points |
srcDimOceIC_latv |
y |
Name of the dimension for the latitude of V-points |
srcDimOceIC_latw |
y |
Name of the dimension for the latitude of W-points |
srcDimOceIC_deptht |
deptht |
Name of the dimension for the depth of T-points |
srcDimOceIC_depthu |
depthu |
Name of the dimension for the depth of U-points |
srcDimOceIC_depthv |
depthv |
Name of the dimension for the depth of V-points |
srcDimOceIC_depthw |
depthw |
Name of the dimension for the depth of W-points |
srcDimOceIC_time |
t |
Name of the dimension for the time |
srcCrdOceIC_lont |
nav_lon |
Name of the coordinate variable for the longitude of T-points |
srcCrdOceIC_lonu |
nav_lon |
Name of the coordinate variable for the longitude of U-points |
srcCrdOceIC_lonv |
nav_lon |
Name of the coordinate variable for the longitude of V-points |
srcCrdOceIC_lonw |
nav_lon |
Name of the coordinate variable for the longitude of W-points |
srcCrdOceIC_latt |
nav_lat |
Name of the coordinate variable for the latitude of T-points |
srcCrdOceIC_latu |
nav_lat |
Name of the coordinate variable for the latitude of U-points |
srcCrdOceIC_latv |
nav_lat |
Name of the coordinate variable for the latitude of V-points |
srcCrdOceIC_latw |
nav_lat |
Name of the coordinate variable for the latitude of W-points |
srcCrdOceIC_deptht |
deptht |
Name of the coordinate variable for the depth of T-points |
srcCrdOceIC_depthu |
depthu |
Name of the coordinate variable for the depth of U-points |
srcCrdOceIC_depthv |
depthv |
Name of the coordinate variable for the depth of V-points |
srcCrdOceIC_depthw |
depthw |
Name of the coordinate variable for the depth of W-points |
srcCrdOceIC_time |
time_counter |
Name of the coordinate variable for the time |
srcVarOceIC_temp |
votemper |
Name of the variable for the Temperature |
srcVarOceIC_sal |
vosaline |
Name of the variable for the Salinity |
srcVarOceIC_ssh |
sossheig |
Name of the variable for the Sea Surface Height |
srcVarOceIC_velU |
vozocrtx |
Name of the variable for the Zonal Current |
srcVarOceIC_velV |
vomecrty |
Name of the variable for the Merid. Current |
set_dataDownlOceBCMesh_urlName¶
This section defines the parameters used to construct the URL for accessing Ocean Open Boundary Condition meshmask datasets. These datasets can be sourced from either a local directory or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlOceBCMesh_usr |
myusername |
Username to access the input ocean BC meshmask datasets from a remote FTP server |
urlOceBCMesh_pwd |
mupwd |
Password to access the input ocean BC meshmask datasets from a remote FTP server |
urlOceBCMesh_urlbase |
file:///scratch/surf/indata_offline/gulfTaranto_20141005/data/data00/indata/oceanBC/srcFull |
Parametric URL for the input ocean BC meshmask datasets. Parameters: (FIELD) |
urlOceBCMesh_lont |
NOTUSED |
Name for the longitude-Tgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_lonu |
NOTUSED |
Name for the longitude-Ugrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_lonv |
NOTUSED |
Name for the longitude-Vgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_lonf |
NOTUSED |
Name for the longitude-Fgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_latt |
NOTUSED |
Name for the latitude-Tgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_latu |
NOTUSED |
Name for the latitude-Ugrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_latv |
NOTUSED |
Name for the latitude-Vgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_latf |
NOTUSED |
Name for the latitude-Fgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_deptht1d |
NOTUSED |
Name for the depth-Tgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_depthw1d |
NOTUSED |
Name for the depth-Wgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_xscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid x-direction used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_xscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid x-direction used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_xscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid x-direction used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_yscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid y-direction used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_yscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid y-direction used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_yscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid y-direction used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_zscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid-3d z-direction used to replace the substring (FIELD) on the parametric URL (needed if obc_lvelCorr=True) |
urlOceBCMesh_zscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid-3d z-direction used to replace the substring (FIELD) on the parametric URL (needed if obc_lvelCorr=True) |
urlOceBCMesh_zscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid-3d z-direction used to replace the substring (FIELD) on the parametric URL (needed if obc_lvelCorr=True) |
urlOceBCMesh_maskt |
NOTUSED |
Name for the LandSea-mask-Tgrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_masku |
NOTUSED |
Name for the LandSea-mask-Ugrid used to replace the substring (FIELD) on the parametric URL |
urlOceBCMesh_maskv |
NOTUSED |
Name for the LandSea-mask-Vgrid used to replace the substring (FIELD) on the parametric URL |
set_dataDownlOceBCMesh_fileName¶
This section specifies the parameters required to generate the filenames of the Ocean Open Boundary Condition meshmask datasets. These filenames help identify the relevant files in the storage location.
| Parameter | Value | Description |
|---|---|---|
fileOceBCMesh_filebase |
meshmask_SYS4a3_IONIAN.nc |
Parametric filename for ocean BC meshmask input datasets. Parameters: (FIELD) |
fileOceBCMesh_lont |
NOTUSED |
Name for the longitude-Tgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_lonu |
NOTUSED |
Name for the longitude-Ugrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_lonv |
NOTUSED |
Name for the longitude-Vgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_lonf |
NOTUSED |
Name for the longitude-Fgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_latt |
NOTUSED |
Name for the latitude-Tgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_latu |
NOTUSED |
Name for the latitude-Ugrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_latv |
NOTUSED |
Name for the latitude-Vgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_latf |
NOTUSED |
Name for the latitude-Fgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_deptht1d |
NOTUSED |
Name for the depth-Tgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_depthw1d |
NOTUSED |
Name for the depth-Wgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_xscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid x-direction used to replace the substring (FIELD) on the filename |
fileOceBCMesh_xscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid x-direction used to replace the substring (FIELD) on the filename |
fileOceBCMesh_xscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid x-direction used to replace the substring (FIELD) on the filename |
fileOceBCMesh_yscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid y-direction used to replace the substring (FIELD) on the filename |
fileOceBCMesh_yscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid y-direction used to replace the substring (FIELD) on the filename |
fileOceBCMesh_yscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid y-direction used to replace the substring (FIELD) on the filename |
fileOceBCMesh_zscalfctt |
NOTUSED |
Name for the scaleFactor-Tgrid-3d z-direction used to replace the substring (FIELD) on the filename (needed if obc_lvelCorr=True) |
fileOceBCMesh_zscalfctu |
NOTUSED |
Name for the scaleFactor-Ugrid-3d z-direction used to replace the substring (FIELD) on the filename (needed if obc_lvelCorr=True) |
fileOceBCMesh_zscalfctv |
NOTUSED |
Name for the scaleFactor-Vgrid-3d z-direction used to replace the substring (FIELD) on the filename (needed if obc_lvelCorr=True) |
fileOceBCMesh_maskt |
NOTUSED |
Name for the LandSea-mask-Tgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_masku |
NOTUSED |
Name for the LandSea-mask-Ugrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_maskv |
NOTUSED |
Name for the LandSea-mask-Vgrid used to replace the substring (FIELD) on the parametric filename |
fileOceBCMesh_lcompression |
False |
If the datasets are gzip compressed files (*.gz) |
fileOceBCMesh_llonFlip |
False |
If the longitude coord. is in the 0 to 360 range (True) or -180 to +180 range (False) |
fileOceBCMesh_llatInv |
False |
If the dataset contains latitude decreasing through the pole (True) |
fileOceBCMesh_lstagC |
True |
If the input fields are defined on a staggered Arakawa C grid (True) or on a T grid (False) |
fileOceBCMesh_lRegGrid |
True |
If the input fields are defined on a REGULAR SPHERICAL GRID (True) or CURVILINEAR NO-SPHERICAL GRID (False) |
fileOceBCMesh_lkeepSrcFull |
True |
If you want to keep the downloaded uncutted datasets on your disk (True) |
set_dataDownlOceBCMesh_varName¶
This section outlines the parameters related to the variable names used within the Ocean Open Boundary Condition meshmask datasets. These variable names are crucial for accurately extracting and utilizing the data within the files.
| Parameter | Value | Description |
|---|---|---|
srcDimOceBCMesh_lont |
x |
Name of the dimension for the longitude of T-points |
srcDimOceBCMesh_lonu |
x |
Name of the dimension for the longitude of U-points |
srcDimOceBCMesh_lonv |
x |
Name of the dimension for the longitude of V-points |
srcDimOceBCMesh_lonf |
x |
Name of the dimension for the longitude of F-points |
srcDimOceBCMesh_lonw |
x |
Name of the dimension for the longitude of W-points |
srcDimOceBCMesh_latt |
y |
Name of the dimension for the latitude of T-points |
srcDimOceBCMesh_latu |
y |
Name of the dimension for the latitude of U-points |
srcDimOceBCMesh_latv |
y |
Name of the dimension for the latitude of V-points |
srcDimOceBCMesh_latf |
y |
Name of the dimension for the latitude of F-points |
srcDimOceBCMesh_latw |
y |
Name of the dimension for the latitude of W-points |
srcDimOceBCMesh_deptht |
z |
Name of the dimension for the depth of T-points |
srcDimOceBCMesh_depthu |
z |
Name of the dimension for the depth of U-points |
srcDimOceBCMesh_depthv |
z |
Name of the dimension for the depth of V-points |
srcDimOceBCMesh_depthw |
z |
Name of the dimension for the depth of W-points |
srcDimOceBCMesh_time |
t |
Name of the dimension for the time |
srcCrdOceBCMesh_lont |
nav_lon |
Name of the coordinate variable for the longitude of T-points |
srcCrdOceBCMesh_lonu |
nav_lon |
Name of the coordinate variable for the longitude of U-points |
srcCrdOceBCMesh_lonv |
nav_lon |
Name of the coordinate variable for the longitude of V-points |
srcCrdOceBCMesh_lonf |
nav_lon |
Name of the coordinate variable for the longitude of F-points |
srcCrdOceBCMesh_latt |
nav_lat |
Name of the coordinate variable for the latitude of T-points |
srcCrdOceBCMesh_latu |
nav_lat |
Name of the coordinate variable for the latitude of U-points |
srcCrdOceBCMesh_latv |
nav_lat |
Name of the coordinate variable for the latitude of V-points |
srcCrdOceBCMesh_latf |
nav_lat |
Name of the coordinate variable for the latitude of F-points |
srcCrdOceBCMesh_deptht |
nav_lev |
Name of the coordinate variable for the depth of T-points |
srcCrdOceBCMesh_depthw |
nav_lev |
Name of the coordinate variable for the depth of W-points |
srcCrdOceBCMesh_time |
nav_lev |
Name of the coordinate variable for the time |
srcVarOceBCMesh_lont |
glamt |
Name of the variable containing the longitude of T-points |
srcVarOceBCMesh_lonu |
glamu |
Name of the variable containing the longitude of U-points |
srcVarOceBCMesh_lonv |
glamv |
Name of the variable containing the longitude of V-points |
srcVarOceBCMesh_lonf |
glamf |
Name of the variable containing the longitude of F-points |
srcVarOceBCMesh_latt |
gphit |
Name of the variable containing the latitude of T-points |
srcVarOceBCMesh_latu |
gphiu |
Name of the variable containing the latitude of U-points |
srcVarOceBCMesh_latv |
gphiv |
Name of the variable containing the latitude of V-points |
srcVarOceBCMesh_latf |
gphif |
Name of the variable containing the latitude of F-points |
srcVarOceBCMesh_deptht1d |
gdept_0 |
Name of the variable containing the depth of T-points |
srcVarOceBCMesh_depthw1d |
gdepw_0 |
Name of the variable containing the depth of W-points |
srcVarOceBCMesh_xscalfctt |
e1t |
Name of the scale factors in zonal direction of T-points |
srcVarOceBCMesh_xscalfctu |
e1u |
Name of the scale factors in zonal direction of U-points |
srcVarOceBCMesh_xscalfctv |
e1v |
Name of the scale factors in zonal direction of V-points |
srcVarOceBCMesh_yscalfctt |
e2t |
Name of the scale factors in meridional direction of T-points |
set_dataDownlOceBC_urlName_preSpinup¶
This section contains the parameters needed to build the URL for accessing pre-spinup Ocean Open Boundary Condition fields datasets. The datasets can be retrieved from either a local source or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlOceBCPre_usr |
myusername |
Username to access the input ocean BC datasets from a remote FTP server |
urlOceBCPre_pwd |
mypwd |
Password to access the input ocean BC datasets from a remote FTP server |
urlOceBCPre_urlbase |
file:///scratch/surf/indata_offline/gulfTaranto_20141005/data/data00/indata/oceanBC/srcFull |
Parametric URL for the input ocean BC datasets. Parameters: (FIELD),(GRID),YYYY(p)MM(p)DD(p),YYYY(i)MM(i)DD(i),YYYY(i-1)MM(i-1)DD(i-1),YYYY(i+1)MM(i+1)DD(i+1) |
urlOceBCPre_temp |
tem |
Name for the Temperature used to replace the substring (FIELD) on the parametric URL |
urlOceBCPre_sal |
sal |
Name for the Salinity used to replace the substring (FIELD) on the parametric URL |
urlOceBCPre_ssh |
ssh |
Name for the Sea Surface Height used to replace the substring (FIELD) on the parametric URL |
urlOceBCPre_velU |
cur |
Name for the Zonal Current used to replace the substring (FIELD) on the parametric URL |
urlOceBCPre_velV |
cur |
Name for the Merid. Current used to replace the substring (FIELD) on the parametric URL |
urlOceBCPre_tempGrid |
gridT |
Name for the Temperature used to replace the substring (GRID) on the parametric URL |
urlOceBCPre_salGrid |
gridT |
Name for the Salinity used to replace the substring (GRID) on the parametric URL |
urlOceBCPre_sshGrid |
gridT |
Name for the Sea Surface Height used to replace the substring (GRID) on the parametric URL |
urlOceBCPre_velUGrid |
gridU |
Name for the Zonal Current used to replace the substring (GRID) on the parametric URL |
urlOceBCPre_velVGrid |
gridV |
Name for the Merid. Current used to replace the substring (GRID) on the parametric URL |
set_dataDownlOceBC_fileName_preSpinup¶
This section provides the parameters required to create the filenames for the pre-spinup Ocean Open Boundary Condition fields datasets. These filenames are used to locate and manage the specific datasets within your data storage system.
| Parameter | Value | Description |
|---|---|---|
fileOceBCPre_filebase |
EXP1_EAS1_1d_YYYY(i)MM(i)DD(i)_YYYY(i+1)MM(i+1)DD(i+1)_(GRID)_IONIAN.nc |
Parametric filename for input ocean BC datasets. Parameters: (FIELD),(GRID),YYYY(p)MM(p)DD(p),YYYY(i)MM(i)DD(i),YYYY(i-1)MM(i-1)DD(i-1),YYYY(i+1)MM(i+1)DD(i+1) |
fileOceBCPre_iProdDate |
1 |
File name format to be downloaded: (=1):fixProdDate, (=2):varProdDate-DayofWeek |
fileOceBCPre_dateProdFixed |
20170801 |
Datasets production date used in the URL/files if iProdDate=1 |
fileOceBCPre_dateProdDayofWeek |
Wednesday |
Datasets production day of the week used in the URL/files if iProdDate=2 |
fileOceBCPre_temp |
TEMP |
Name for the Temperature used to replace the substring (FIELD) on the parametric filename |
fileOceBCPre_sal |
PSAL |
Name for the Salinity used to replace the substring (FIELD) on the parametric filename |
fileOceBCPre_ssh |
ASLV |
Name for the Sea Surface Height used to replace the substring (FIELD) on the parametric filename |
fileOceBCPre_velU |
UCOM |
Name for the Zonal Current used to replace the substring (FIELD) on the parametric filename |
fileOceBCPre_velV |
VCOM |
Name for the Meridional Current used to replace the substring (FIELD) on the parametric filename |
fileOceBCPre_tempGrid |
grid_T |
Name for the Temperature grid used to replace the substring (GRID) on the parametric filename |
fileOceBCPre_salGrid |
grid_T |
Name for the Salinity grid used to replace the substring (GRID) on the parametric filename |
fileOceBCPre_sshGrid |
grid_T |
Name for the Sea Surface Height grid used to replace the substring (GRID) on the parametric filename |
fileOceBCPre_velUGrid |
grid_U |
Name for the Zonal Current grid used to replace the substring (GRID) on the parametric filename |
fileOceBCPre_velVGrid |
grid_V |
Name for the Meridional Current grid used to replace the substring (GRID) on the parametric filename |
fileOceBCPre_lcompression |
False |
Enables gzip compression for downloaded datasets if True (*.gz files) |
set_dataDownlOceBC_varName_preSpinup¶
This section details the parameters for specifying the field names of the pre-spinup Ocean Open Boundary Condition datasets. The field names identify the specific variables within the datasets, ensuring proper data extraction and processing.
| Parameter | Value | Description |
|---|---|---|
srcDimOceBCPre_lont |
x |
Name of the dimension for the longitude |
srcDimOceBCPre_lonu |
x |
Name of the dimension for the longitude |
srcDimOceBCPre_lonv |
x |
Name of the dimension for the longitude |
srcDimOceBCPre_lonw |
x |
Name of the dimension for the longitude |
srcDimOceBCPre_latt |
y |
Name of the dimension for the latitude |
srcDimOceBCPre_latu |
y |
Name of the dimension for the latitude |
srcDimOceBCPre_latv |
y |
Name of the dimension for the latitude |
srcDimOceBCPre_latw |
y |
Name of the dimension for the latitude |
srcDimOceBCPre_deptht |
deptht |
Name of the dimension for the depth |
srcDimOceBCPre_depthu |
depthu |
Name of the dimension for the depth |
srcDimOceBCPre_depthv |
depthv |
Name of the dimension for the depth |
srcDimOceBCPre_depthw |
depthw |
Name of the dimension for the depth |
srcDimOceBCPre_time |
time_counter |
Name of the dimension for the time |
srcCrdOceBCPre_lont |
nav_lon |
Name of the coordinate variable for the longitude |
srcCrdOceBCPre_lonu |
nav_lon |
Name of the coordinate variable for the longitude |
srcCrdOceBCPre_lonv |
nav_lon |
Name of the coordinate variable for the longitude |
srcCrdOceBCPre_lonw |
nav_lon |
Name of the coordinate variable for the longitude |
srcCrdOceBCPre_latt |
nav_lat |
Name of the coordinate variable for the latitude |
srcCrdOceBCPre_latu |
nav_lat |
Name of the coordinate variable for the latitude |
srcCrdOceBCPre_latv |
nav_lat |
Name of the coordinate variable for the latitude |
srcCrdOceBCPre_latw |
nav_lat |
Name of the coordinate variable for the latitude |
srcCrdOceBCPre_deptht |
deptht |
Name of the coordinate variable for the depth |
srcCrdOceBCPre_depthu |
depthu |
Name of the coordinate variable for the depth |
srcCrdOceBCPre_depthv |
depthv |
Name of the coordinate variable for the depth |
srcCrdOceBCPre_depthw |
depthw |
Name of the coordinate variable for the depth |
srcCrdOceBCPre_time |
time_counter |
Name of the coordinate variable for the time |
srcVarOceBCPre_temp |
votemper |
Name of the variable for the Temperature |
srcVarOceBCPre_sal |
vosaline |
Name of the variable for the Salinity |
srcVarOceBCPre_ssh |
sossheig |
Name of the variable for the Sea Surface Height |
srcVarOceBCPre_velU |
vozocrtx |
Name of the variable for the Zonal Current |
srcVarOceBCPre_velV |
vomecrty |
Name of the variable for the Meridional Current |
set_dataDownlOceBC_urlName_postSpinup¶
This section contains the parameters needed to build the URL for accessing post-spinup Ocean Open Boundary Condition fields datasets. The datasets can be retrieved from either a local source or a remote repository.
| Parameter | Value | Description |
|---|---|---|
urlOceBCPost_usr |
myusername |
Username to access the input ocean BC datasets from a remote FTP server |
urlOceBCPost_pwd |
mypwd |
Password to access the input ocean BC datasets from a remote FTP server |
urlOceBCPost_urlbase |
file:///scratch/surf/indata_offline/gulfTaranto_20141005/data/data00/indata/oceanBC/srcFull |
Parametric URL for the input ocean BC datasets. Parameters: (FIELD),(GRID),YYYY(p)MM(p)DD(p),YYYY(i)MM(i)DD(i),YYYY(i-1)MM(i-1)DD(i-1),YYYY(i+1)MM(i+1)DD(i+1) |
urlOceBCPost_temp |
tem |
Name for the Temperature used to replace the substring (FIELD) on the parametric URL |
urlOceBCPost_sal |
sal |
Name for the Salinity used to replace the substring (FIELD) on the parametric URL |
urlOceBCPost_ssh |
ssh |
Name for the Sea Surface Height used to replace the substring (FIELD) on the parametric URL |
urlOceBCPost_velU |
cur |
Name for the Zonal Current used to replace the substring (FIELD) on the parametric URL |
urlOceBCPost_velV |
cur |
Name for the Merid. Current used to replace the substring (FIELD) on the parametric URL |
urlOceBCPost_tempGrid |
gridT |
Name for the Temperature used to replace the substring (GRID) on the parametric URL |
urlOceBCPost_salGrid |
gridT |
Name for the Salinity used to replace the substring (GRID) on the parametric URL |
urlOceBCPost_sshGrid |
gridT |
Name for the Sea Surface Height used to replace the substring (GRID) on the parametric URL |
urlOceBCPost_velUGrid |
gridU |
Name for the Zonal Current used to replace the substring (GRID) on the parametric URL |
urlOceBCPost_velVGrid |
gridV |
Name for the Merid. Current used to replace the substring (GRID) on the parametric URL |
set_dataDownlOceBC_fileName_postSpinup¶
This section provides the parameters required to create the filenames for the post-spinup Ocean Open Boundary Condition fields datasets. These filenames are used to locate and manage the specific datasets within your data storage system.
| Parameter | Value | Description |
|---|---|---|
fileOceBCPost_filebase |
EXP1_EAS1_1d_YYYY(i)MM(i)DD(i)_YYYY(i+1)MM(i+1)DD(i+1)_(GRID)_IONIAN.nc |
Parametric filename for the input ocean BC datasets. Parameters: (FIELD),(GRID),YYYY(p)MM(p)DD(p),YYYY(i)MM(i)DD(i),YYYY(i-1)MM(i-1)DD(i-1),YYYY(i+1)MM(i+1)DD(i+1) |
fileOceBCPost_iProdDate |
1 |
Filename format to be downloaded (=1): fixProdDate, (=2): varProdDate-DayofWeek |
fileOceBCPost_dateProdFixed |
20170801 |
Datasets production date used in the URL/files (if iProdDate=1) |
fileOceBCPost_dateProdDayofWeek |
Wednesday |
Datasets production date used in the URL/files (if iProdDate=2) |
fileOceBCPost_temp |
TEMP |
Name for the Temperature used to replace the substring (FIELD) on the parametric filename |
fileOceBCPost_sal |
PSAL |
Name for the Salinity used to replace the substring (FIELD) on the parametric filename |
fileOceBCPost_ssh |
ASLV |
Name for the Sea Surface Height used to replace the substring (FIELD) on the parametric filename |
fileOceBCPost_velU |
UCOM |
Name for the Zonal Current used to replace the substring (FIELD) on the parametric filename |
fileOceBCPost_velV |
VCOM |
Name for the Merid. Current used to replace the substring (FIELD) on the parametric filename |
fileOceBCPost_tempGrid |
grid_T |
Name for the Temperature used to replace the substring (GRID) on the parametric filename |
fileOceBCPost_salGrid |
grid_T |
Name for the Salinity used to replace the substring (GRID) on the parametric filename |
fileOceBCPost_sshGrid |
grid_T |
Name for the Sea Surface Height used to replace the substring (GRID) on the parametric filename |
fileOceBCPost_velUGrid |
grid_U |
Name for the Zonal Current used to replace the substring (GRID) on the parametric filename |
fileOceBCPost_velVGrid |
grid_V |
Name for the Merid. Current used to replace the substring (GRID) on the parametric filename |
fileOceBCPost_lcompression |
False |
Enables if datasets you want to download are gzip compressed files (*.gz) |
set_dataDownlOceBC_varName_postSpinup¶
This section details the parameters for specifying the field names of the post-spinup Ocean Open Boundary Condition datasets. The field names identify the specific variables within the datasets, ensuring proper data extraction and processing.
| Parameter | Value | Description |
|---|---|---|
srcDimOceBCPost_lont |
x |
Name of the dimension for the longitude |
srcDimOceBCPost_lonu |
x |
Name of the dimension for the longitude |
srcDimOceBCPost_lonv |
x |
Name of the dimension for the longitude |
srcDimOceBCPost_lonw |
x |
Name of the dimension for the longitude |
srcDimOceBCPost_latt |
y |
Name of the dimension for the latitude |
srcDimOceBCPost_latu |
y |
Name of the dimension for the latitude |
srcDimOceBCPost_latv |
y |
Name of the dimension for the latitude |
srcDimOceBCPost_latw |
y |
Name of the dimension for the latitude |
srcDimOceBCPost_deptht |
deptht |
Name of the dimension for the depth |
srcDimOceBCPost_depthu |
depthu |
Name of the dimension for the depth |
srcDimOceBCPost_depthv |
depthv |
Name of the dimension for the depth |
srcDimOceBCPost_depthw |
depthw |
Name of the dimension for the depth |
srcDimOceBCPost_time |
time_counter |
Name of the dimension for the time |
srcCrdOceBCPost_lont |
nav_lon |
Name of the coordinate variable for the longitude |
srcCrdOceBCPost_lonu |
nav_lon |
Name of the coordinate variable for the longitude |
srcCrdOceBCPost_lonv |
nav_lon |
Name of the coordinate variable for the longitude |
srcCrdOceBCPost_lonw |
nav_lon |
Name of the coordinate variable for the longitude |
srcCrdOceBCPost_latt |
nav_lat |
Name of the coordinate variable for the latitude |
srcCrdOceBCPost_latu |
nav_lat |
Name of the coordinate variable for the latitude |
srcCrdOceBCPost_latv |
nav_lat |
Name of the coordinate variable for the latitude |
srcCrdOceBCPost_latw |
nav_lat |
Name of the coordinate variable for the latitude |
srcCrdOceBCPost_deptht |
deptht |
Name of the coordinate variable for the depth |
srcCrdOceBCPost_depthu |
depthu |
Name of the coordinate variable for the depth |
srcCrdOceBCPost_depthv |
depthv |
Name of the coordinate variable for the depth |
srcCrdOceBCPost_depthw |
depthw |
Name of the coordinate variable for the depth |
srcCrdOceBCPost_time |
time_counter |
Name of the coordinate variable for the time |
srcVarOceBCPost_temp |
votemper |
Name of the variable for the Temperature |
srcVarOceBCPost_sal |
vosaline |
Name of the variable for the Salinity |
srcVarOceBCPost_ssh |
sossheig |
Name of the variable for the Sea Surface Height |
srcVarOceBCPost_velU |
vozocrtx |
Name of the variable for the Zonal Current |
srcVarOceBCPost_velV |
vomecrty |
Name of the variable for the Meridional Current |
Data Manipulation Settings¶
set_manipolBat¶
This section defines the parameters for modifying and controlling bathymetry values within the simulation domain.
| Parameter | Value | Description |
|---|---|---|
manipBat_seaLevel |
0.0 |
Value to add to bathymetry to modify surface elevation (e.g., Caspian Sea 28 meters) |
manipBat_minDepth |
5.0 |
Minimum bathymetry value of the whole domain (at sea grid points) |
manipBat_maxDepth |
22000.0 |
Maximum bathymetry value of the whole domain (at sea grid points) |
manipBat_lmoveDepth |
True |
Enables the modification of bathymetry in rectangular regions |
manipBatMoveDepth_lonWest |
18.0 |
Longitude of the western boundary of rectangular regions where you want to move the depth |
manipBatMoveDepth_lonEast |
18.5 |
Longitude of the eastern boundary of rectangular regions where you want to move the depth |
manipBatMoveDepth_latSout |
40.3 |
Latitude of the southern boundary of rectangular regions where you want to move the depth |
manipBatMoveDepth_latNort |
40.7 |
Latitude of the northern boundary of rectangular regions where you want to move the depth |
manipBatMoveDepth_depth |
0.0 |
Depth of rectangular regions where you want to move the depth (if = 0.0, you add land points) |
set_shapFiltBat¶
This section defines the parameters for applying a Shapiro filter to the bathymetry data.
| Parameter | Value | Description |
|---|---|---|
norder_shapFiltBat |
2 |
Order of the Shapiro Filter for the bathymetry data |
nloop_shapFiltBat |
4 |
Number of applications of the Shapiro Filter for the bathymetry data |
set_shapFiltOce¶
This section defines the parameters for applying a Shapiro filter to the output ocean data.
| Parameter | Value | Description |
|---|---|---|
norder_shapFiltOce |
2 |
Order of the Shapiro Filter for the ocean output data |
nloop_shapFiltOce |
10 |
Number of applications of the Shapiro Filter for the ocean output data |
Interpolation Method Settings¶
set_interpMethodBat¶
This section specifies the interpolation method to be used when processing bathymetric elevation data.
| Parameter | Value | Description |
|---|---|---|
interpMethodBat_elev |
bilin |
Remapping method to use for the Sea Floor Elevation: bilin, bicub, distwgt |
set_interpMethodAtm¶
This section defines the interpolation methods used for remapping the atmospheric data fields required by the simulation.
| Parameter | Value | Description |
|---|---|---|
interpMethodAtm_velU |
bilin |
Remapping method for the zonal component of air velocity |
interpMethodAtm_velV |
bilin |
Remapping method for the meridional component of air velocity |
interpMethodAtm_temp |
bilin |
Remapping method for Air Temperature |
interpMethodAtm_dpTemp |
bilin |
Remapping method for Dewpoint Temperature |
interpMethodAtm_mslp |
bilin |
Remapping method for mean sea level pressure |
interpMethodAtm_cloudCover |
bilin |
Remapping method for Cloud Cover |
interpMethodAtm_prec |
bilin |
Remapping method for Total Precipitation |
interpMethodAtm_tauU |
bilin |
Remapping method for Zonal Wind Stress |
interpMethodAtm_tauV |
bilin |
Remapping method for Meridional Wind Stress |
interpMethodAtm_qtot |
bilin |
Remapping method for Total Heat Flux |
interpMethodAtm_qsr |
bilin |
Remapping method for Solar Radiation Penetration |
interpMethodAtm_emp |
bilin |
Remapping method for Mass Flux Exchanged |
interpMethodAtm_tempS |
bilin |
Remapping method for Surface Temperature |
interpMethodAtm_salS |
bilin |
Remapping method for Surface Salinity |
interpMethodAtm_umid |
bilin |
Remapping method for Air Umidity |
interpMethodAtm_radLW |
bilin |
Remapping method for Long Wave Radiation |
interpMethodAtm_radSW |
bilin |
Remapping method for Short Wave Radiation |
interpMethodAtm_snow |
bilin |
Remapping method for Solid Precipitation |
set_interpMethodOceIC¶
This section defines the interpolation methods used for remapping the ocean initial condition data fields necessary for the simulation.
| Parameter | Value | Description |
|---|---|---|
interpMethodOceIC_temp |
bilin |
Remapping method for Temperature |
interpMethodOceIC_sal |
bilin |
Remapping method for Salinity |
interpMethodOceIC_ssh |
bilin |
Remapping method for Sea Surface Height |
interpMethodOceIC_velU |
bilin |
Remapping method for Zonal Current |
interpMethodOceIC_velV |
bilin |
Remapping method for Meridional Current |
set_interpMethodOceBC¶
This section defines the interpolation methods used for remapping the ocean boundary condition data fields required by the simulation.
| Parameter | Value | Description |
|---|---|---|
interpMethodOceBC_temp |
bilin |
Remapping method for Temperature |
interpMethodOceBC_sal |
bilin |
Remapping method for Salinity |
interpMethodOceBC_ssh |
bilin |
Remapping method for Sea Surface Height |
interpMethodOceBC_velU |
bilin |
Remapping method for Zonal Current |
interpMethodOceBC_velV |
bilin |
Remapping method for Meridional Current |
set_interpMethodTide¶
This section defines the interpolation methods used for remapping the tidal data fields required by the simulation.
| Parameter | Value | Description |
|---|---|---|
interpMethodTide_elev |
bilin |
Remapping method for Tidal elevation |
interpMethodTide_velU |
bilin |
Remapping method for Tidal Zonal transport |
interpMethodTide_velV |
bilin |
Remapping method for Tidal Meridional transport |
Output Management Settings¶
set_lvarOceOutT¶
This section defines the settings for controlling which oceanographic fields (on the T-grid) are written to the output files at the end of the simulation.
| Parameter | Value | Description |
|---|---|---|
lvarOceOutT_temp |
True |
Enables writing the Temperature (votemper) field in the output file |
lvarOceOutT_sal |
True |
Enables writing the Salinity (vosaline) field in the output file |
lvarOceOutT_tempS |
False |
Enables writing the Surface Temperature (sosstsst) field in the output file |
lvarOceOutT_salS |
False |
Enables writing the Surface Salinity (sosaline) field in the output file |
lvarOceOutT_ssh |
True |
Enables writing the Sea Surface Height (sossheig) field in the output file |
lvarOceOutT_fluxWater_up |
False |
Enables writing the Net Upward Water Flux (sowaflup) field in the output file |
lvarOceOutT_fluxSalt_down |
False |
Enables writing the Downward Salt Flux (sosfldow) field in the output file |
lvarOceOutT_fluxHeat_down |
False |
Enables writing the Net Downward Heat Flux (sohefldo) field in the output file |
lvarOceOutT_fluxHeatS_damp |
False |
Enables writing the Surface Heat Flux: Damping (sohefldp) field in the output file |
lvarOceOutT_fluxWaterS_damp |
False |
Enables writing the Surface Water Flux: Damping (sowafldp) field in the output file |
lvarOceOutT_fluxSaltS_damp |
False |
Enables writing the Surface Salt Flux: Damping (sosafldp) field in the output file |
lvarOceOutT_runoffs |
False |
Enables writing the River Runoffs (sorunoff) field in the output file |
lvarOceOutT_tempConcen |
False |
Enables writing the Concentration/Dilution term on Temperature (sosst_cd) |
lvarOceOutT_salConcen |
False |
Enables writing the Concentration/Dilution term on Salinity (sosss_cd) |
lvarOceOutT_radSW |
False |
Enables writing the Shortwave Radiation (soshfldo) field in the output file |
lvarOceOutT_depthTurb |
False |
Enables writing the Turbocline Depth (somixhgt) field in the output file |
lvarOceOutT_mld |
False |
Enables writing the Mixed Layer Depth 0.01 (somxl010) field in the output file |
lvarOceOutT_iceFrac |
False |
Enables writing the Ice Fraction (soicecov) field in the output file |
lvarOceOutT_wind10 |
False |
Enables writing the Wind Speed at 10m (sowindsp) field in the output file |
lvarOceOutT_bowlin |
False |
Enables writing the Bowl Index (sobowlin) field in the output file |
set_lvarOceOutU¶
This section defines the settings for controlling which oceanographic fields (on the U-grid) are written to the output files at the end of the simulation.
| Parameter | Value | Description |
|---|---|---|
lvarOceOutU_velU |
True |
Enables writing the Zonal Current (vozocrtx) field in the output file |
lvarOceOutU_tauU |
False |
Enables writing the Zonal Wind Stress (sozotaux) field in the output file |
set_lvarOceOutV¶
This section defines the settings for controlling which oceanographic fields (on the V-grid) are written to the output files at the end of the simulation.
| Parameter | Value | Description |
|---|---|---|
lvarOceOutV_velV |
True |
Enables writing the Meridional Current (vomecrty) field in the output file |
lvarOceOutV_tauV |
False |
Enables writing the Meridional Wind Stress (sometauy) field in the output file |
set_lvarOceOutW¶
| Parameter | Value | Description |
|---|---|---|
lvarOceOutW_velW |
False |
Enables writing the Vertical Velocity (vovecrtz) field in the output file |
lvarOceOutW_eddyDiffW |
False |
Enables writing the Vertical Eddy Diffusivity (votkeavt) field in the output file |
lvarOceOutW_eddyViscW |
False |
Enables writing the Vertical Eddy Viscosity (votkeavm) field in the output file |
This section defines the settings for controlling which oceanographic fields (on the W-grid) are written to the output files at the end of the simulation.
set_lzip¶
This section contains the gzip compression settings for various output data files, providing options to enable or disable compression for different data types.
| Parameter | Value | Description |
|---|---|---|
lzip_indata |
False |
Enable/disable gzip compression of the Indata Bat, Atm, OceIC, OceBC files |
lzip_extrapdata |
False |
Enable/disable gzip compression of the Extrapdata Atm, OceIC, OceBC files |
lzip_regriddata |
False |
Enable/disable gzip compression of the Regriddata Bat, Atm, OceIC, OceBC, OceBCbdy files |
lzip_outdata |
False |
Enable/disable gzip compression of the Outdata Ocean files |
set_nemoCPPkey¶
This section contains the compilation keys used to compile the NEMO code.
| Parameter | Value | Description |
|---|---|---|
cppkey_zdf |
key_zdfric |
Name of CPP-keys for Vertical viscosity/diffusivity (e.g., key_zdfric, key_zdftke) |
cppkey_spg |
key_dynspg_ts |
Name of CPP-keys for Surface Pressure Gradient (e.g., key_dynspg_exp, key_dynspg_flt, key_dynspg_ts) |
cppkey_obc |
key_bdy |
Name of CPP-keys for Open Boundary Conditions (e.g., key_bdy) |
cppkey_tide |
NOTUSED |
Name of CPP-keys for Tidal Potential forcing (e.g., key_tide) |
cppkey_hpc |
key_mpp_mpi |
Name of CPP-keys for Massively Parallel Processing (e.g., key_mpp_mpi) |
cppkey_dia |
NOTUSED |
Name of CPP-keys for Instantaneous output (e.g., key_diainstant) |
cppkey_signfunc |
key_nosignedzero |
Name of CPP-keys to handle intrinsic SIGN function for Fortran compiler (e.g., key_nosignedzero) |
